Vermont Tap & Die - 3/4-16 UNF, 4 Flute, Bottoming, Plug & Taper, TiN Finish, High Speed Steel Tap Set - Right Hand Cut, 4-1/4" OAL, 2" Thread Length, 2/3B Class of Fit, Series TN3105 - Exact Industrial Supply

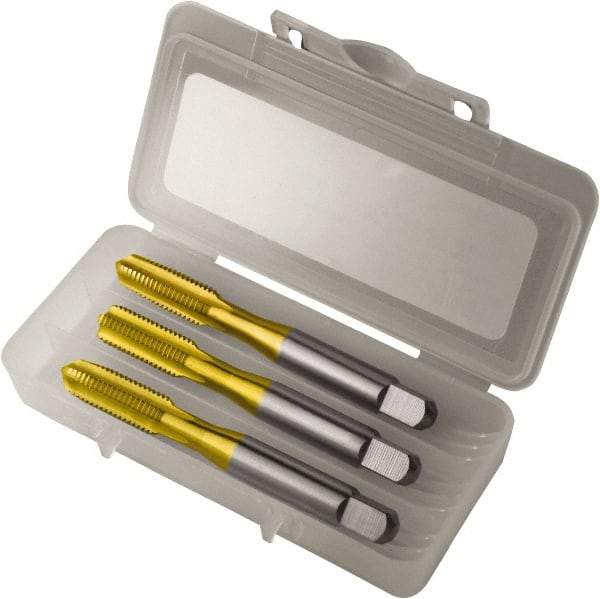

Vermont Tap & Die - 3/4-16 UNF, 4 Flute, Bottoming, Plug & Taper, TiN Finish, High Speed Steel Tap Set - Right Hand Cut, 4-1/4" OAL, 2" Thread Length, 2/3B Class of Fit, Series TN3105


Item #: 59036509
Brand: Vermont Tap & Die
Model #: 174514
Exact Tooling IR#: 04

Features and Benefits

Bottoming chamfers have 1 to 2 threads. Plug chamfers have 3 to 5 threads. Taper chamfers have 7 to 10 threads and are typically used as a starter tap. They all can be used for threading blind holes.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Product Specifications
Thread Size 3/4-16
Number of Flutes 4
Chamfer Bottoming; Plug; Taper
Material High Speed Steel
Finish/Coating TiN
Thread Direction Right Hand
Class of Fit 2/3B
Thread Limit H3
Thread Length (Decimal Inch) 1.2200
Thread Length (Inch) 2
Overall Length (Decimal Inch) 4.2500
Overall Length (Inch) 4-1/4
Overall Length (mm) 107.95
Thread Standard UNF
Series/List TN3105
Number of Pieces 3
$252.78
