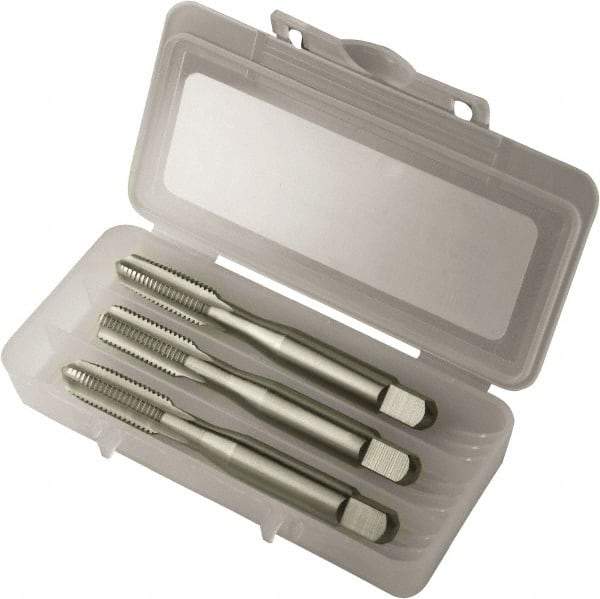

Vermont Tap & Die - M3x0.50 Metric, 4 Flute, Bottoming, Plug & Taper, Bright Finish, High Speed Steel Tap Set - Right Hand Cut, 1-15/16" OAL, 5/8" Thread Length, 6H Class of Fit, Series 3105M - Exact Industrial Supply

Vermont Tap & Die - M3x0.50 Metric, 4 Flute, Bottoming, Plug & Taper, Bright Finish, High Speed Steel Tap Set - Right Hand Cut, 1-15/16" OAL, 5/8" Thread Length, 6H Class of Fit, Series 3105M


Item #: 59036483
Brand: Vermont Tap & Die
Model #: 174519
Exact Tooling IR#: 04

Features and Benefits

Bottoming chamfers have 1 to 2 threads. Plug chamfers have 3 to 5 threads. Taper chamfers have 7 to 10 threads and are typically used as a starter tap. They all can be used for threading blind holes.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Product Specifications
Thread Size M3x0.50
Number of Flutes 4
Chamfer Bottoming; Plug; Taper
Material High Speed Steel
Finish/Coating Bright
Thread Direction Right Hand
Class of Fit 6H
Thread Limit D3
Thread Length (Decimal Inch) 0.3100
Thread Length (Inch) 5/8
Overall Length (Decimal Inch) 1.9375
Overall Length (Inch) 1-15/16
Overall Length (mm) 49.21
Thread Standard Metric
Series/List 3105M
Number of Pieces 3
$46.87

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
