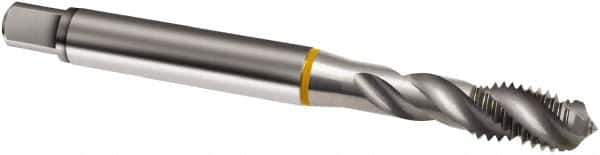

Guhring - #4-40 UNC 3 Flute 2B Modified Bottoming Spiral Flute Tap - Cobalt, Bright Finish, 56mm OAL, Right Hand Flute, Right Hand Thread, H2/H3, Series 876
Item #: 58576240
Brand: Guhring
Model #: 9008760028450
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #4-40 |
| Chamfer | Modified Bottoming |
| Class of Fit | 2B |
| Thread Limit | H2/H3 |
| Number of Flutes | 3 |
| Material | Cobalt |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (mm) | 56.00 |
| Helix Angle | 40 |
| Thread Standard | UNC |
| Flute Type | Fast Spiral |
| Series/List | 876 |
