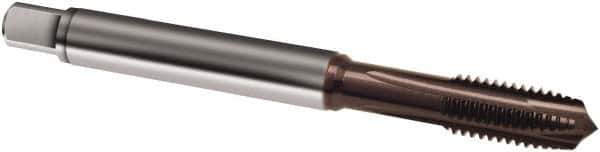

Guhring - M10x1.50 Metric, 3 Flute, TiAlN Finish, Powdered Metal Spiral Point Tap - Plug Chamfer, Right Hand Thread, 90mm OAL, 6H Class of Fit, Series 2916
Item #: 58539578
Brand: Guhring
Model #: 9029160100000
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M10x1.50 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Class of Fit | 6H |
| Thread Limit | D4/D5 |
| Finish/Coating | TiAlN |
| Material | Powdered Metal |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (mm) | 90.00 |
| Oversize | No |
| Thread Standard | Metric |
| Series/List | 2916 |
