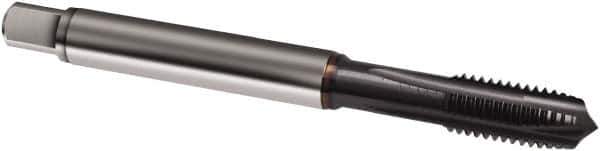

Guhring - M8x0.75 Metric Fine, 4 Flute, TiCN Finish, Powdered Metal Spiral Point Tap - Plug Chamfer, Right Hand Thread, 80mm OAL, 6H Class of Fit, Series 2903
Item #: 58534611
Brand: Guhring
Model #: 9029030080040
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Titanium carbonitride (TiCN) is harder and more wear-resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M8x0.75 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Class of Fit | 6H |
| Thread Limit | D3/D4 |
| Finish/Coating | TiCN |
| Material | Powdered Metal |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (mm) | 80.00 |
| Oversize | No |
| Thread Standard | Metric Fine |
| Series/List | 2903 |
