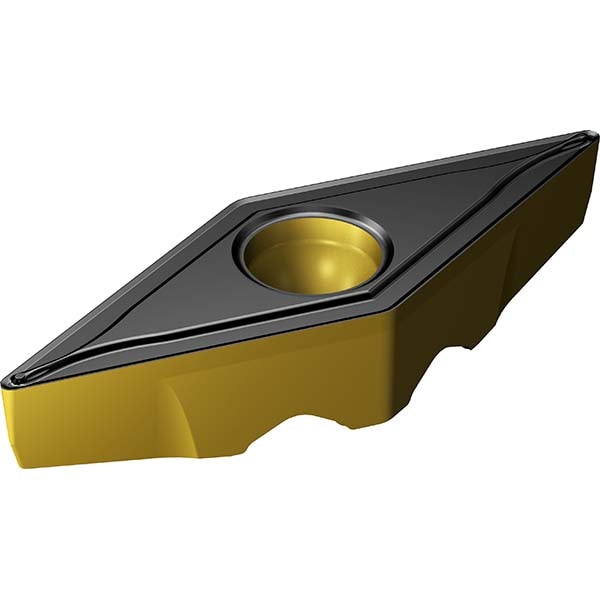

Turning Insert: TR-VB1308-F 4425, Carbide
Item #: 19106319
Brand: Sandvik Coromant
Model #: 7860780
Product Specifications
| ANSI Insert Code | TRVB |
| ISO Insert Code | TRVB1308 |
| Relief Angle | 5 |
| Insert Style | TRVB |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 35 |
| Manufacturer Grade | 4425 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 4.53 |
| Insert Thickness (Decimal Inch) | 0.1782 |
| Series | CoroTurn TR |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Inscribed Circle (mm) | 8.00 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.40 |
| Insert Holding Method | Screw; Clamp |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Iso Code | TR-VB1308-F 4425 |
| Manufacturers Catalog Number | TR-VB1308-F 4425 |
| Chip Breaker | F |
| ISO Size Code | 1308 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 1308 |
