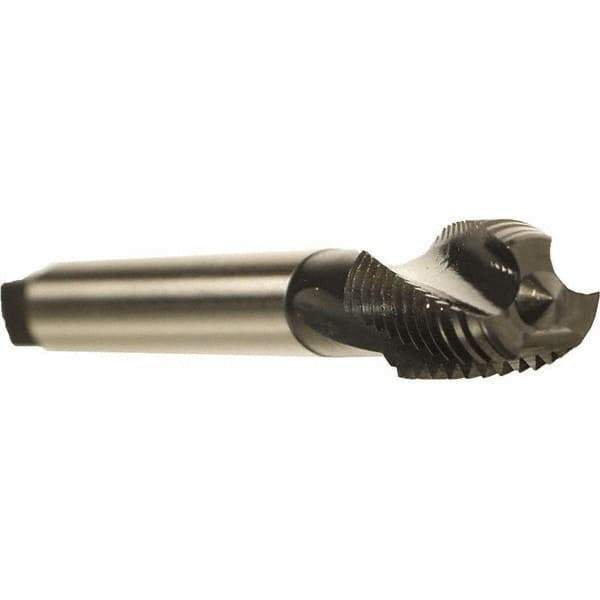

Emuge - M42x4.50 Metric 4 Flute 6HX Modified Bottoming Spiral Flute Tap - Cobalt, Oxide Finish, 200mm OAL, Right Hand Flute, Right Hand Thread, Series Rekord D
Item #: 57688319
Brand: Emuge
Model #: C0456001.0142
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
Slow Spiral Flutes with 8-20 degree angles are used for tough materials like high nickel alloys, titanium and some series of stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M42x4.50 |
| Chamfer | Modified Bottoming |
| Class of Fit | 6HX |
| Number of Flutes | 4 |
| Material | Cobalt |
| Finish/Coating | Oxide |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 7.8740 |
| Overall Length (mm) | 200.00 |
| Helix Angle | 15 |
| Thread Standard | Metric |
| Oversize | No |
| Thread Length (Decimal Inch) | 2.2047 |
| Thread Length (mm) | 56.00 |
| Flute Type | Slow Spiral |
| Series/List | Rekord D |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Shank Diameter (mm) | 32.00 |
| Shank Length (Decimal Inch) | 5.6693 |
| Shank Length (mm) | 144 |
| Material Application | Cast Iron; Cobalt Alloys; Copper Alloys; Nickel; Nickel Alloys; Stainless Steel; Steel; Titanium; Titanium Alloys |
