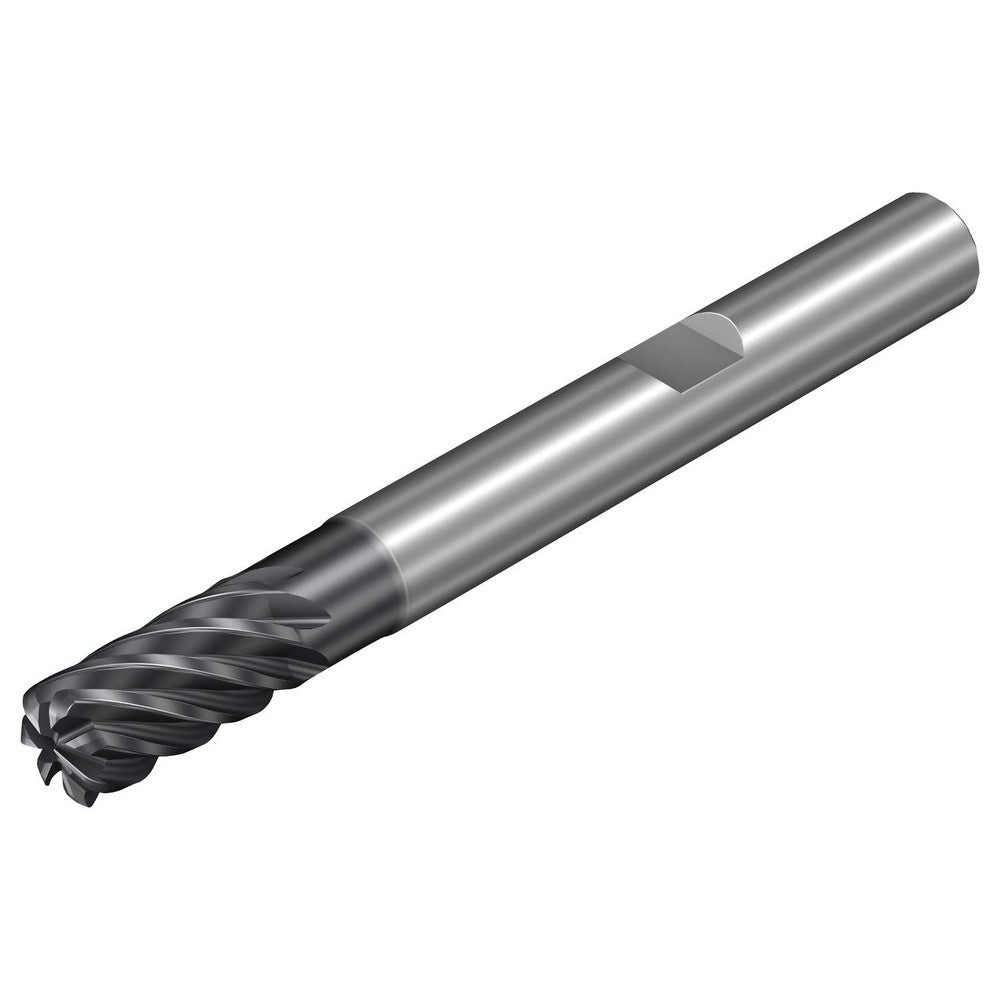

Brand: Sandvik Coromant / Part #: 8213619
Item #: 97620066
Brand: Sandvik Coromant
Model #: 8213619
Product Specifications
Mill Diameter (mm) | 8.00 |
Corner Radius (Decimal Inch) | 0.0197 |
Coating/Finish | AlCrN |
End Mill Material | Solid Carbide |
Number Of Flutes | 7 |
Single Or Double End | Single |
Overall Length (mm) | 63.0000 |
Length of Cut (mm) | 16.0000 |
Cutting Direction | Right Hand |
Coolant Through | No |
Mill Diameter (Decimal Inch) | 0.3150 |
Flute Direction | Right Hand |
Helix Angle | 37? |
Overall Length (Decimal Inch) | 2.4803 |
Chipbreaker | No |
End Type | Corner Radius |
Length Of Cut (Decimal Inch - 4 Decimals) | 0.6299 |
Extended Reach | No |
Shank Type | Weldon Flat |
Centercutting | Yes |
Shank Diameter (Decimal Inch) | 0.315 |
Shank Diameter (mm) | 8.0000 |
Primary Workpiece Material | Steel |
Primary Workpiece Material Code | P |
Secondary Workpiece Material | Stainless Steel |
Secondary Workpiece Material Code | M |
Series | CoroMill Dura |
Coating Classification | PVD |
Manufacturers Catalog Number | 1K337-0800-050-XD 1730 |
