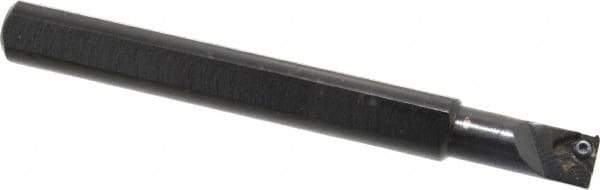

Seco - Internal Thread, Right Hand Cut, 0.47" Shank Width x 0.441" Shank Height Indexable Threading Toolholder - 5-1/2" OAL, 11NR Insert Compatibility, SN Toolholder, Series Snap Tap
Item #: 57139487
Brand: Seco
Model #: 72332
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 0.4700 |
| Shank Height (Decimal Inch) | 0.4410 |
| Overall Length (Decimal Inch) | 5.5000 |
| Insert Compatibility | 11NR |
| Series | Snap Tap |
| Toolholder Style | SN |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3150 |
| Center to Cutting Edge (Decimal Inch) | 0.3150 |
| Head Length (Decimal Inch) | 1.2500 |
| Maximum Bore Depth (Decimal Inch) | 1.2500 |
| Minimum Bore Diameter (Decimal Inch) | 0.6000 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Toolholder Material | Steel |
