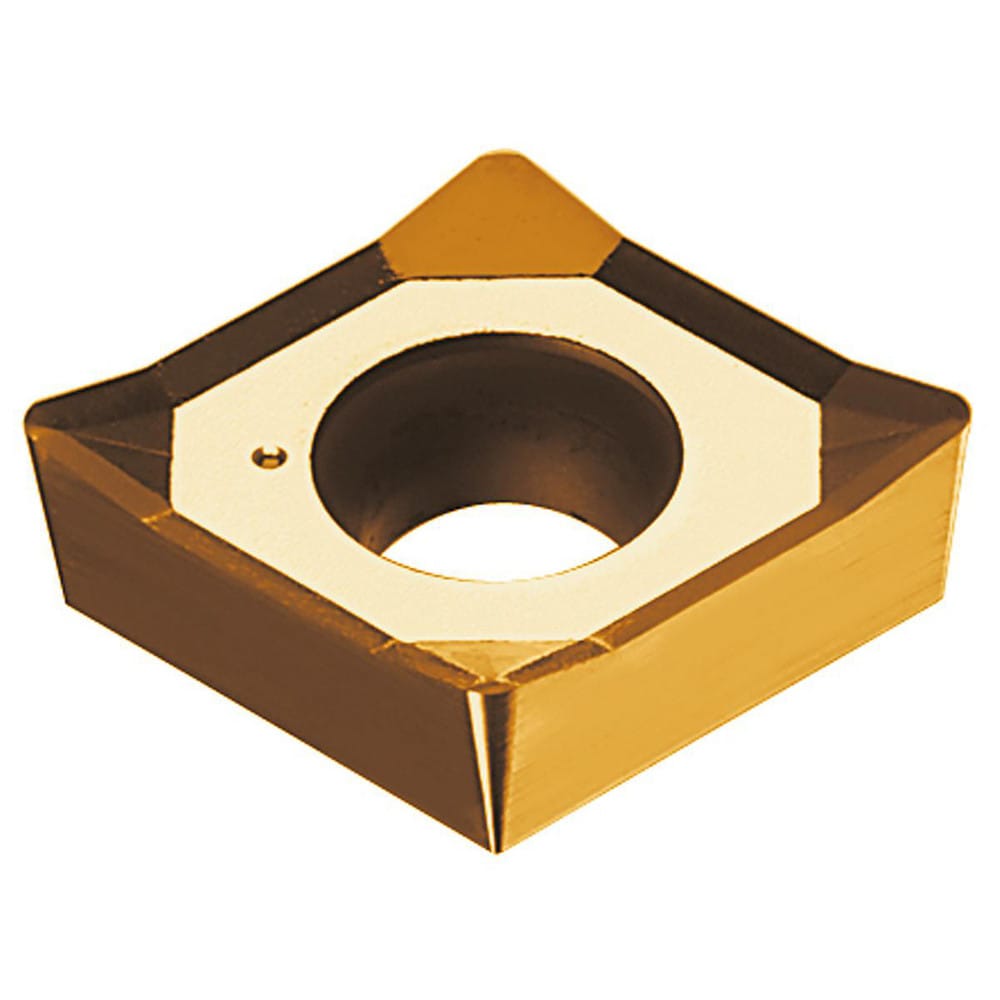

Turning Insert: CCGT 09T308FN-ALU PVD1, Carbide
Item #: 00724799
Brand: Arno
Model #: 12427
Product Specifications
| ANSI Insert Code | CCGT32.52 |
| ISO Insert Code | CCGT09T308 |
| Relief Angle | 7 |
| Insert Style | CCGT |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80 |
| Manufacturer Grade | PVD1 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | CCGT |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3807 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Secondary Workpiece Material Code | P; S; K; M |
| Iso Code | CCGT 09T308FN-ALU |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 12427 |
| Material Grade | N25; N10 |
| Coating Classification | PVD |
| Chip Breaker | ALU |
| Cutting Edge Style | Sharp |
| Industry Standard Number | CCGT32.52FN-ALU |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| ANSI Size Code | 32.52 |
| ISO Size Code | 09T308 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.52 |
