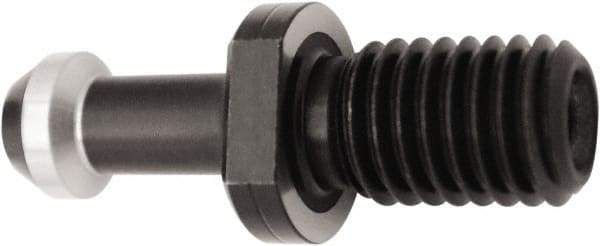

Accupro - A Style, CAT40 Taper, 5/8-11 Thread, 45° Angle Radius, High Torque Retention Knob - 1-5/8" OAL, 0.74" Knob Diam, 0.44" Flange Thickness, 0.64" from Knob to Flange, 0.2362" Coolant Hole, Through Coolant - Exact Industrial Supply

Accupro - A Style, CAT40 Taper, 5/8-11 Thread, 45° Angle Radius, High Torque Retention Knob - 1-5/8" OAL, 0.74" Knob Diam, 0.44" Flange Thickness, 0.64" from Knob to Flange, 0.2362" Coolant Hole, Through Coolant


Item #: 55833354
Brand: Accupro
Exact Tooling IR#: 04

Features and Benefits

High torque knobs improve the fit of the toolholder with the spindle. They prevent the small end of the toolholder from expanding by using a precision pilot and place the force of the threads into a deeper cross-section of material in the toolholder.
Product Specifications
Type High Torque
Taper Size CAT40
Thread Size 5/8-11
Angle Radius 45.00
Knob Diameter (Decimal Inch) 0.7400
Through Coolant Yes
Style A
Neck Diameter (Decimal Inch) 0.4900
Overall Length (Decimal Inch) 1.6243
Knob to Flange Length (Decimal Inch) 0.6400
Flange Thickness (Decimal Inch) 0.4400
Coolant Hole Diameter (Decimal Inch) 0.2362
$29.06
