Accupro - B Style, CAT40 Taper, 5/8-11 Thread, 90° Angle Radius, High Torque Retention Knob - 2-1/4" OAL, 0.5906" Knob Diam, 0.9882" Flange Thickness, 1.2637" from Knob to Flange - Exact Industrial Supply

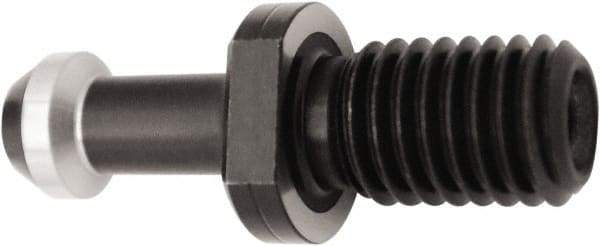

Accupro - B Style, CAT40 Taper, 5/8-11 Thread, 90° Angle Radius, High Torque Retention Knob - 2-1/4" OAL, 0.5906" Knob Diam, 0.9882" Flange Thickness, 1.2637" from Knob to Flange


Item #: 55833347
Brand: Accupro
Exact Tooling IR#: 04

Features and Benefits

High torque knobs improve the fit of the toolholder with the spindle. They prevent the small end of the toolholder from expanding by using a precision pilot and place the force of the threads into a deeper cross-section of material in the toolholder.
Product Specifications
Type High Torque
Taper Size CAT40
Thread Size 5/8-11
Angle Radius 90.00
Knob Diameter (Decimal Inch) 0.5906
Through Coolant No
Style B
Neck Diameter (Decimal Inch) 0.3937
Overall Length (Decimal Inch) 2.2480
Knob to Flange Length (Decimal Inch) 1.2637
Flange Thickness (Decimal Inch) 0.9882
$38.30
