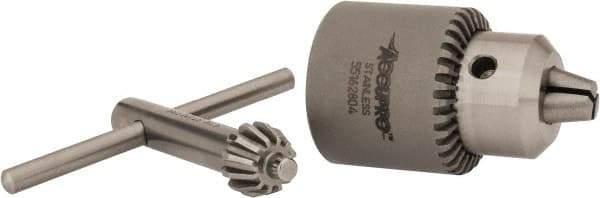

Accupro - JT1, 0.51 to 7.39mm Capacity, Tapered Mount Stainless Steel Drill Chuck - Keyed, 28.4mm Sleeve Diam, 40mm Open Length
Item #: 55162804
Brand: Accupro
Exact Tooling IR#: 04
Features and Benefits
Tapered mount drill chucks have an internal Jacobs Taper (JT) that is press-fit onto a corresponding JT arbor (shank) or spindle.
Keyed chucks are engineered to either loosen or tighten the hold on a tool by using a key. Keyed chucks offer the advantage of applying additional torque on the bit when slippage is a concern during heavy-duty applications.
Plain bearings are designed with a 1-piece gearing and sleeve for reducing teeth breakage. They are used for medium duty operations with stationary drilling, turning, milling and woodworking machines.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Maximum Drill Chuck Capacity (mm) | 7.39 |
| Maximum Drill Chuck Capacity (Decimal Inch) | 0.2910 |
| Minimum Drill Chuck Capacity (mm) | 0.51 |
| Minimum Drill Chuck Capacity (Decimal Inch) | 0.0200 |
| Mount Type | Tapered Mount |
| Mounting Size | JT1 |
| Key Style | Keyed |
| Bearing Type | Plain Bearing |
| Material | Stainless Steel |
| Closed Length (mm) | 50.30 |
| Open Length (mm) | 40.00 |
| Sleeve Diameter (mm) | 28.40 |
| Key Number | K1M |
