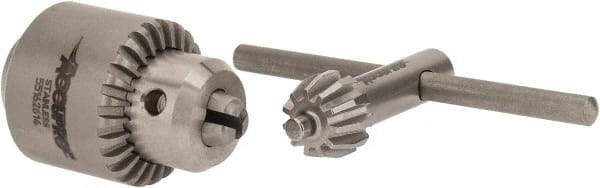

Accupro - 5/16-24, 0.51 to 3.96mm Capacity, Threaded Mount Stainless Steel Drill Chuck - Keyed, 22mm Sleeve Diam, 30mm Open Length
Item #: 55162614
Brand: Accupro
Exact Tooling IR#: 04
Features and Benefits
Threaded mount drill chucks have an internal thread for securing to a power drill spindle or a threaded arbor.
Keyed chucks are engineered to either loosen or tighten the hold on a tool by using a key. Keyed chucks offer the advantage of applying additional torque on the bit when slippage is a concern during heavy-duty applications.
Plain bearings are designed with a 1-piece gearing and sleeve for reducing teeth breakage. They are used for medium duty operations with stationary drilling, turning, milling and woodworking machines.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Maximum Drill Chuck Capacity (mm) | 3.96 |
| Maximum Drill Chuck Capacity (Decimal Inch) | 0.1560 |
| Minimum Drill Chuck Capacity (mm) | 0.51 |
| Minimum Drill Chuck Capacity (Decimal Inch) | 0.0200 |
| Mount Type | Threaded Mount |
| Mounting Size | 5/16-24 |
| Key Style | Keyed |
| Bearing Type | Plain Bearing |
| Material | Stainless Steel |
| Closed Length (mm) | 37.40 |
| Open Length (mm) | 30.00 |
| Sleeve Diameter (mm) | 22.00 |
| Key Number | K0M |
