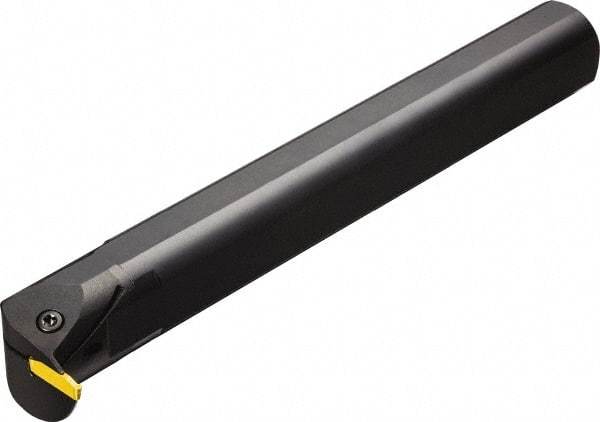

Sandvik Coromant - AG123, Internal, Left Hand, 11mm Max Depth of Cut, 4mm Max Groove Width, Indexable Grooving Tool Holder - N123..GM Insert Compatibility, 1.4567" Shank Height, 11.811" OAL, Through Coolant
Item #: 54935234
Brand: Sandvik Coromant
Model #: 5734694
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Groove Width (mm) | 4.00 |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Overall Length (Decimal Inch) | 11.8110 |
| Toolholder Style | AG123 |
| Insert Compatibility | N123..GM |
| Shank Height (Decimal Inch) | 1.4567 |
| Series | CoroCut 1-2 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Coolant Hole Diameter (mm) | 12.00 |
| Insert Holding Method | Screw |
| Insert Seat Size | H |
| Minimum Hole Diameter (Decimal Inch) | 1.9685 |
| Maximum Hole Depth (Decimal Inch) | 2.1654 |
| Maximum Bore Depth (Decimal Inch) | 2.1654 |
| igrvh Maximum Bore Depth (mm) | 55.00 |
| Back of Bar to Cutting Edge (mm) | 18.50 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7283 |
| Center to Cutting Edge (Decimal Inch) | 1.2205 |
| Head Length (Decimal Inch) | 2.1654 |
| Shank Length (Decimal Inch) | 9.6457 |
| Manufacturers Catalog Number | LAG123H11-40B |
| Height to Shank Top (Decimal Inch) | 1.4567 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | L123H2-0400-0501-CF; L123H2-0400-0502-CM; L123H2-0400-0503-CR; LG123H1-0200-0002-G; LG123H1-0200-0010-R; LG123H1-0200-RO; LG123H1-0300-0002-G; LG123H1-0300-0015-R; LG123H1-0300-RO; LG123H1-0400-0004-G; LG123H1-0400-0020-R; N123H1-0400-0002-CM; N123H1-0400 |
| Minimum Bore Diameter (Decimal Inch) | 1.9685 |
| Minimum BoreDiameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
