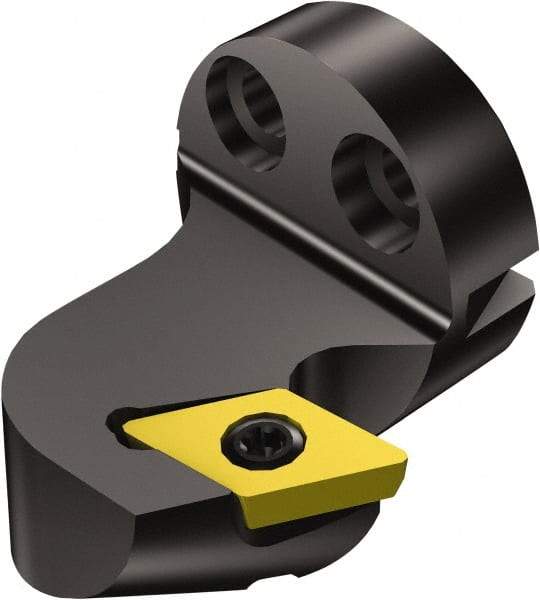

Sandvik Coromant - 570-SDUCR-32-11X, Right Hand Cut, 40mm Min Bore Diameter, Size 32, Steel, Modular Boring Cutting Unit Head - Compatible with DCMT 3(2.5)2 Inserts, Through Coolant
Item #: 54906359
Brand: Sandvik Coromant
Model #: 5764376
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 32 |
| Series Name | CoroTurn 107 |
| Minimum Bore Diameter (mm) | 40.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.5748 |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (mm) | 20.00 |
| Maximum Bore Depth (Decimal Inch) | 0.7874 |
| Insert Style | DCMT 3(2.5)2 |
| Head Length/Projection (mm) | 37.00 |
| Head Length/Projection (Decimal Inch) | 1.4567 |
| Insert Holding Method | Screw or Clamp |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Head Diameter Excluding Insert (mm) | 32.00 |
| Head Diameter Excluding Insert (Decimal Inch) | 1.2598 |
| Complete Insert Compatibility | DCMT 11 T3 08 |
| Series | CoroTurn 107 |
| Modular Connection Size | 32 |
