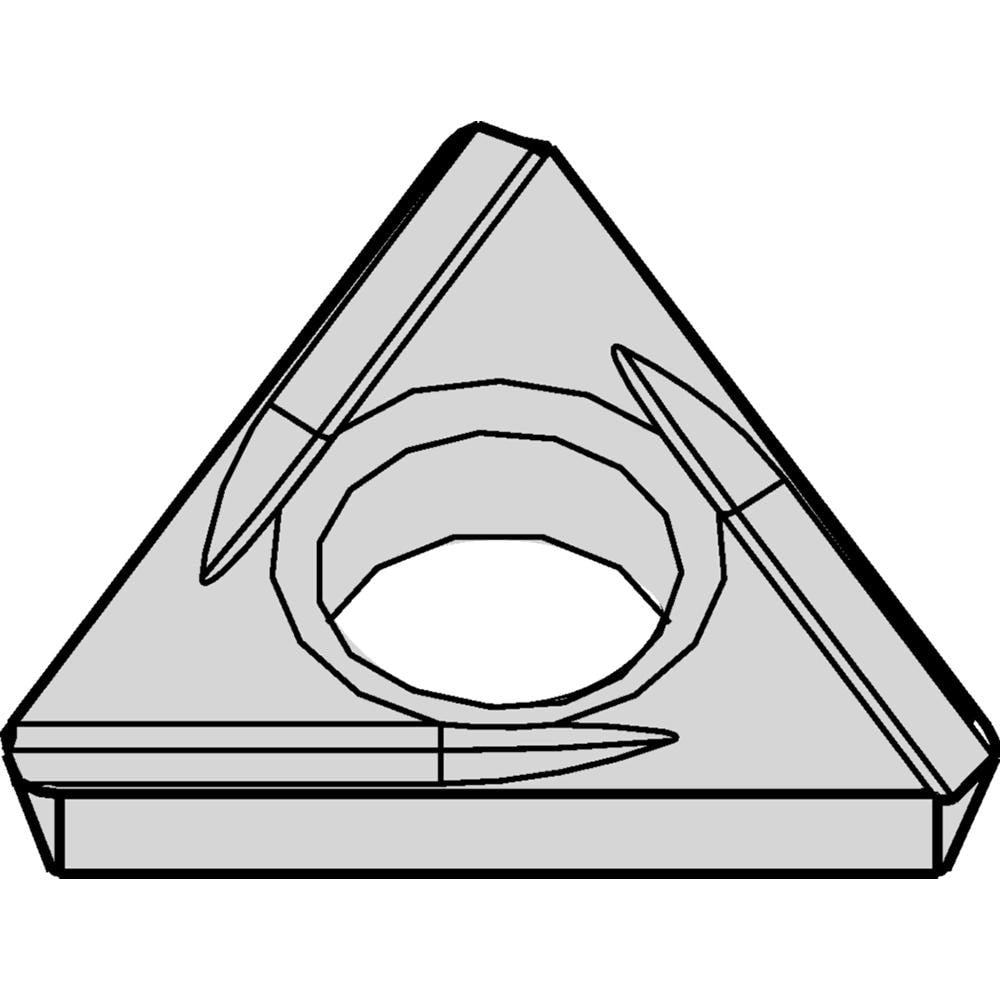

Boring Inserts; Insert Style: TDHH; Insert Size Code: 13081; Insert Material: Carbide; Material Grade: Submicron; Manufacturer Grade: CG5
Item #: 36042562
Brand: Widia
Model #: 2828386
Product Specifications
| Insert Style | TDHH |
| Insert Size Code | 13081 |
| Insert Material | Carbide |
| Material Grade | Submicron |
| Manufacturer Grade | CG5 |
| Inscribed Circle (Decimal Inch) | 0.1600 |
| Hole Diameter (Decimal Inch) | 0.0950 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0150 |
| Relief Angle | 15 |
| Rake | Positive |
| Series | TDHH |
| Coating Process | PVD |
| Included Angle | 60 |
| Insert Shape | Triangle |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M; N |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Iso Code | TDHH07S104 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 2828386 |
| Length (Decimal Inch - 4 Decimals) | 0.2830 |
| Width (Decimal Inch - 4 Decimals) | 0.16 |
| Coating/Finish | TiN |
| UNSPSC Code | 23242105 |
| Maximum Depth of Cut (Decimal Inch) | 0.0943 |
