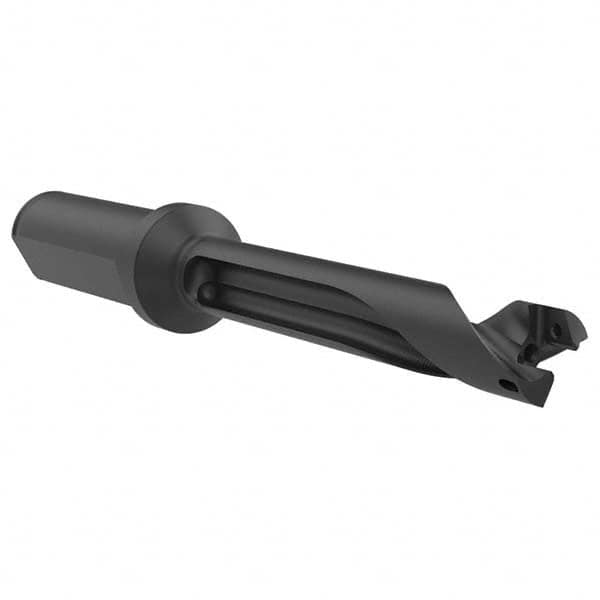

Allied Machine and Engineering - 0.5512" to 0.5905" Diam 7xD 4-9/64" Max Depth Straight Flute Spade Drill
Item #: 38148136
Brand: Allied Machine and Engineering
Model #: ST07140-075F
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 14 |
| Minimum Drill Diameter (Decimal Inch) | 0.5512 |
| Maximum Drill Diameter (Decimal Inch) | 0.5905 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 7-15/64 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (Inch) | 4-9/64 |
| Flute Type | Straight Flute |
| Body Length (Inch) | 5-13/64 |
| Shank Length (Inch) | 2-1/32 |
| Series Code/Seat Size | 14 |
| Through Coolant | Yes |
| Toolholder Material | Steel |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
