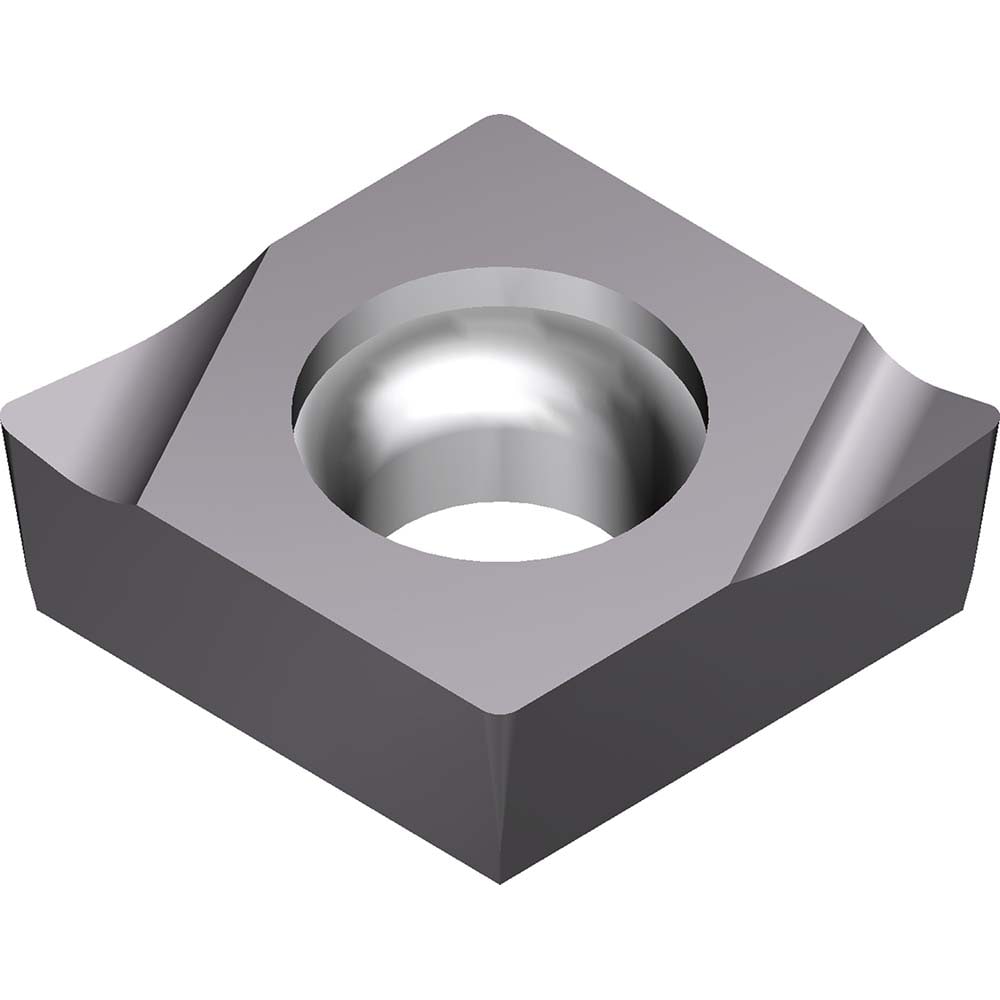

Boring Inserts; Insert Style: CCET; Insert Size Code: 03X104; Insert Material: Carbide; Material Grade: M10, P10; Manufacturer Grade: AC1030U
Item #: 20236816
Brand: Sumitomo
Model #: 1LR4202
Product Specifications
| Insert Style | CCET |
| Insert Size Code | 03X104 |
| Insert Material | Carbide |
| Material Grade | M10; P10 |
| Manufacturer Grade | AC1030U |
| Inscribed Circle (Decimal Inch) | 0.1378 |
| Hole Diameter (Decimal Inch) | 1.9000 |
| Insert Holding Method | Screw-On |
| Corner Radius (Decimal Inch) | 0.0157 |
| Relief Angle | 7 |
| Rake | Positive |
| Chipbreaker | LFY |
| Series | AC1030U |
| Coating Process | PVD |
| Included Angle | 80 |
| Iso Code | CCET03X104L-FY |
| Manufacturers Catalog Number | CCET03X104LFY-AC1030U |
| Length (Decimal Inch - 4 Decimals) | 0.1398 |
| Coating/Finish | Absotech |
| UNSPSC Code | 23242105 |
