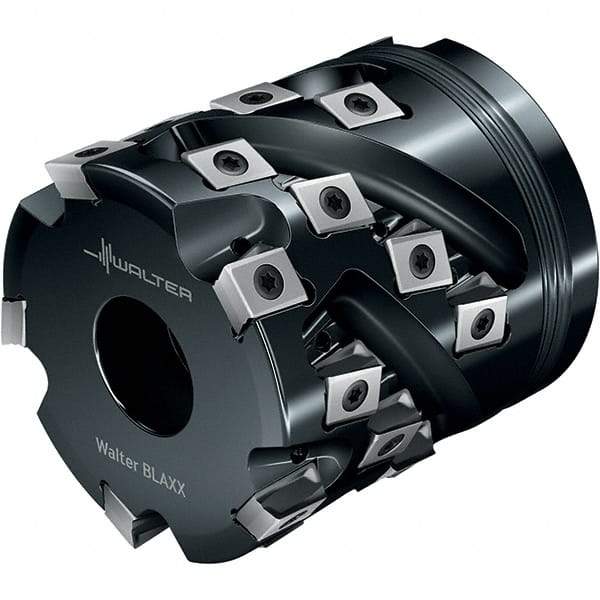

Walter - 9 Inserts, 50mm Cut Diam, 22mm Arbor Diam, 45mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 65mm High, LN.. 1306.. Insert Compatibility, Through Coolant, Series Blaxx
Item #: 53083630
Brand: Walter
Model #: 6364969
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Overall Height (mm) | 65.00 |
| Overall Height (Decimal Inch) | 2.5591 |
| Insert Compatibility | LN.. 1306.. |
| Series | Blaxx |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 45.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.7717 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | F5138 |
| Number of Flutes | 3 |
| Keyway Width (mm) | 6.00 |
| Keyway Width (Decimal Inch) | 0.2362 |
| Minimum Insert Radius (Decimal Inch) | 0.0315 |
| Complete Insert Compatibility | LNHU 130608R-L55T; LNHU 130608R-L85T; LNHU 130612R-L55T; LNHU 130616R-L55T; LNHU 130620R-L55T; LNHU 130625R-L55T; LNHU 130630R-L55T; LNHU 130632R-L55T |
