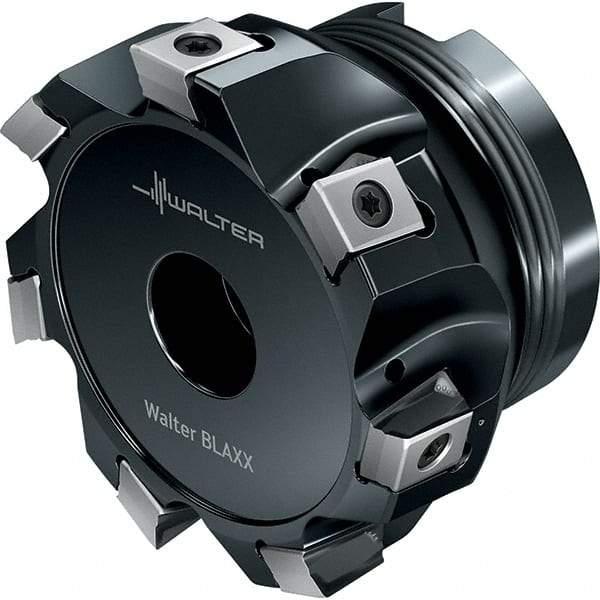

Walter - 8 Inserts, 160mm Cut Diam, 40mm Arbor Diam, 15mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 63mm High, LN.. 1607.. Insert Compatibility, Through Coolant, Series Blaxx
Item #: 53083598
Brand: Walter
Model #: 6316864
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 160.00 |
| Cutting Diameter (Decimal Inch) | 6.2992 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | LN.. 1607.. |
| Series | Blaxx |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | F5241 |
| Number of Flutes | 8 |
| Keyway Width (mm) | 10.00 |
| Keyway Width (Decimal Inch) | 0.3937 |
| Maximum RPM | 10000 |
| Minimum Insert Radius (Decimal Inch) | 0.0315 |
| Complete Insert Compatibility | LNHU 160708R-L55T; LNHU 160708R-L85T; LNHU 160712R-L55T; LNHU 160716R-L55T; LNHU 160720R-L55T; LNHU 160725R-L55T |
