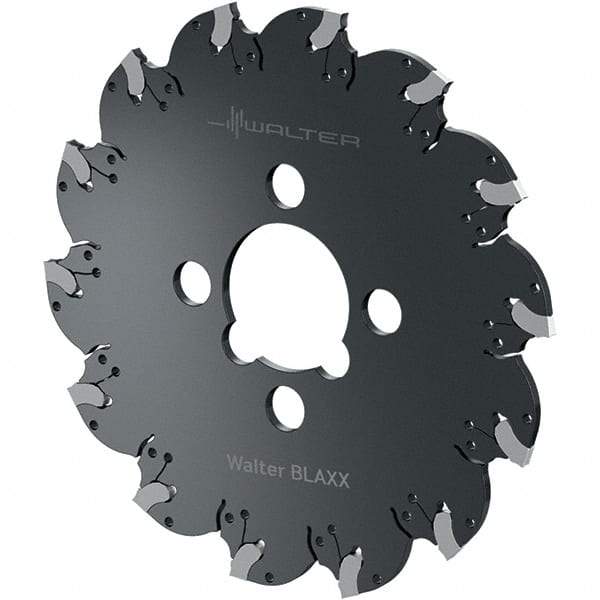

Walter - Arbor Hole Connection, 0.1181" Cutting Width, 63/64" Depth of Cut, 100mm Cutter Diam, 0.8661" Hole Diam, 9 Tooth Indexable Slotting Cutter - F5055.B Toolholder, SX-3E Insert, Right Hand Cutting Direction
Item #: 53078176
Brand: Walter
Model #: 6422005
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 25.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
| Cutter Diameter (mm) | 100.00 |
| Cutter Diameter (Decimal Inch) | 3.9370 |
| Hole Diameter (mm) | 22.00 |
| Hole Diameter (Decimal Inch) | 0.8661 |
| Number of Teeth | 9 |
| Toolholder Style | F5055.B |
| Series | Blaxx |
| Insert Style | SX-3E |
| Staggered Tooth | No |
| Number of Cutter Inserts | 9 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Keyway Width (Decimal Inch) | 0.2362 |
| Keyway Width (mm) | 6.00 |
| Radius | No |
| Cutter Body Width (mm) | 2.40 |
| Cutter Body Width (Decimal Inch) | 0.0945 |
| Manufacturers Catalog Number | F5055.B22.100.Z09.3,0 |
| Complete Insert Compatibility1 | SX-3E300N02-CE4; SX-3E300N02-CF5; SX-3E300N02-CF6 |
