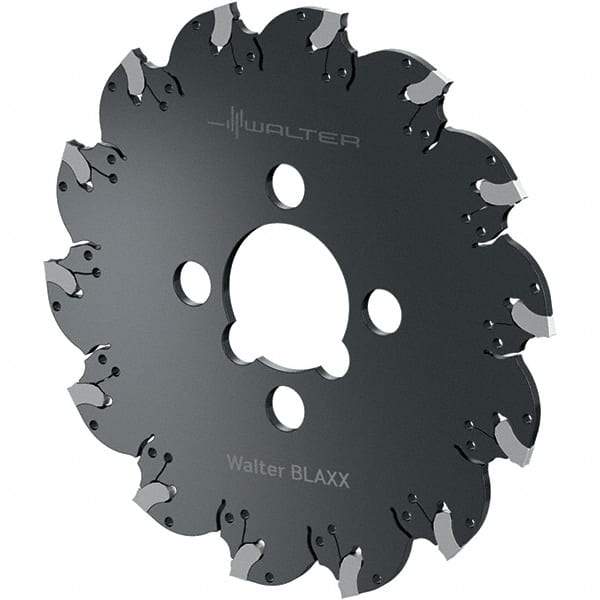

Walter - Arbor Hole Connection, 0.0787" Cutting Width, 1-1/2" Depth of Cut, 160mm Cutter Diam, 1.5748" Hole Diam, 14 Tooth Indexable Slotting Cutter - F5055.B Toolholder, SX-2E Insert, Right Hand Cutting Direction
Item #: 53078135
Brand: Walter
Model #: 6422023
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 38.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.4961 |
| Cutter Diameter (mm) | 160.00 |
| Cutter Diameter (Decimal Inch) | 6.2992 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 14 |
| Toolholder Style | F5055.B |
| Series | Blaxx |
| Insert Style | SX-2E |
| Staggered Tooth | No |
| Number of Cutter Inserts | 14 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Keyway Width (Decimal Inch) | 0.3937 |
| Keyway Width (mm) | 10.00 |
| Radius | No |
| Cutter Body Width (mm) | 1.60 |
| Cutter Body Width (Decimal Inch) | 0.0630 |
| Manufacturers Catalog Number | F5055.B40.160.Z14.2,0 |
| Complete Insert Compatibility1 | SX-2E200N02-CE4; SX-2E200N02-CF5; SX-2E200N02-CF6 |
