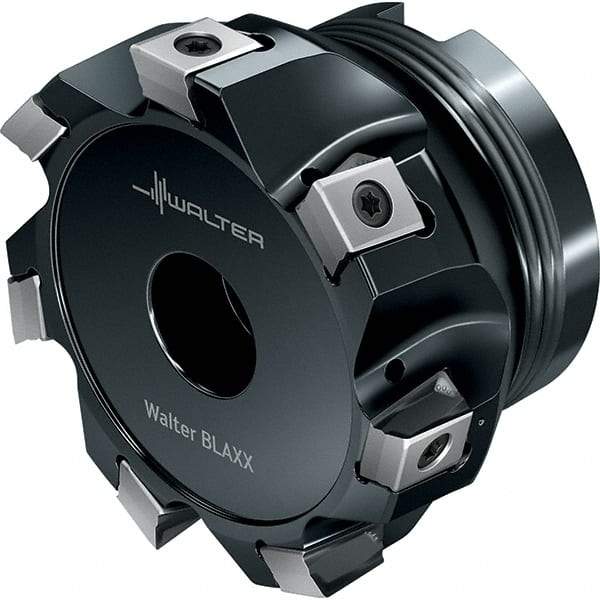

Walter - 7 Inserts, 5" Cut Diam, 1-1/2" Arbor Diam, 0.591" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 2.48" High, LN.. 1607.. Insert Compatibility, Through Coolant, Series Blaxx
Item #: 53077947
Brand: Walter
Model #: 6317225
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Overall Height (Decimal Inch) | 2.4800 |
| Insert Compatibility | LN.. 1607.. |
| Series | Blaxx |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.5910 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | F5241 |
| Number of Flutes | 7 |
| Maximum RPM | 10000 |
| Minimum Insert Radius (Decimal Inch) | 0.0310 |
| Complete Insert Compatibility | LNHU 160708R-L55T; LNHU 160708R-L85T; LNHU 160712R-L55T; LNHU 160716R-L55T; LNHU 160720R-L55T; LNHU 160725R-L55T |
