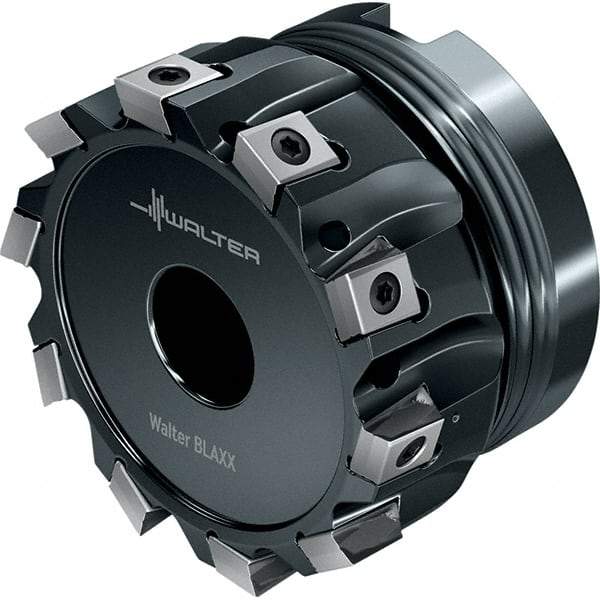

Walter - 7 Inserts, 63mm Cut Diam, 22mm Arbor Diam, 8mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 40mm High, LN.. 0904.. Insert Compatibility, Through Coolant, Series Blaxx
Item #: 53058145
Brand: Walter
Model #: 6195347
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Insert Compatibility | LN.. 0904.. |
| Series | Blaxx |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | F5041 |
| Number of Flutes | 7 |
| Keyway Width (mm) | 6.00 |
| Keyway Width (Decimal Inch) | 0.2362 |
| Maximum RPM | 10000 |
| Minimum Insert Radius (Decimal Inch) | 0.0157 |
| Complete Insert Compatibility | LNHU 090404R-L55T; LNHU 090404R-L85T; LNHU 090408R-L55T; LNHU 090412R-L55T; LNHU 090416R-L55T; LNHU 090420R-L55T |
