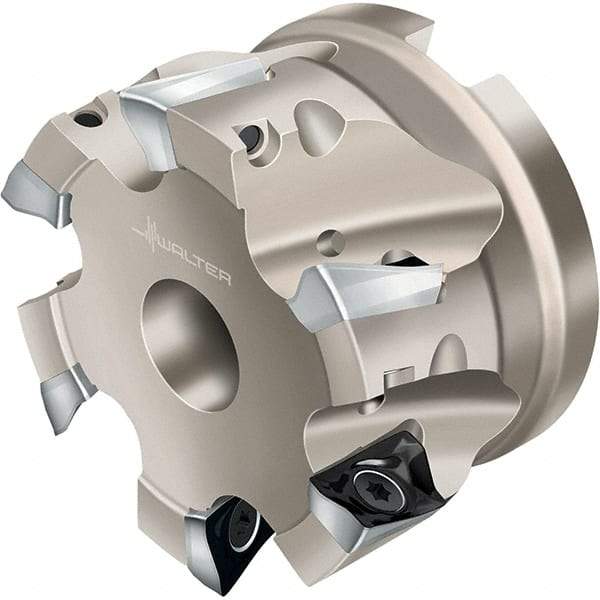

Walter - 8 Inserts, 80mm Cut Diam, 27mm Arbor Diam, 11mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - AD.. 0803.. Insert Compatibility, Through Coolant, Series Xtra-tec
Item #: 53058061
Brand: Walter
Model #: 6078051
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Insert Compatibility | AD.. 0803.. |
| Series | Xtra-tec |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | F4042 |
| Number of Flutes | 8 |
| Keyway Width (mm) | 7.00 |
| Keyway Width (Decimal Inch) | 0.2756 |
| Minimum Insert Radius (Decimal Inch) | 0.0157 |
| Complete Insert Compatibility | ADGT 0803PER-D51; ADGT 0803PER-D56; ADGT 0803PER-F56; ADHT 0803PER-G88; ADKT 0803PER-F56; ADMT 080302R-F56; ADMT 080304R-D56; ADMT 080304R-F56; ADMT 080304R-G56; ADMT 080308R-F56; ADMT 080312R-F56; ADMT 080316R-F56; ADMT 080320R-F56; ADMT 080325R-F56 |
