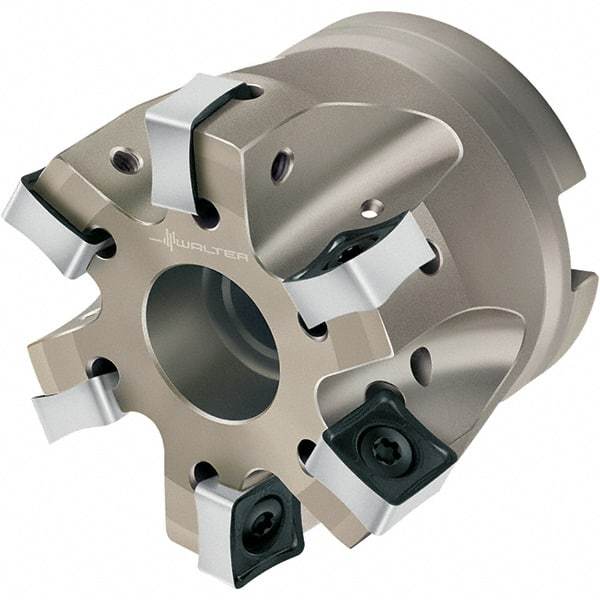

Walter - 5 Inserts, 80mm Cut Diam, 27mm Arbor Diam, 10mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 50mm High, SN.X 1205.. Insert Compatibility, Through Coolant, Series Xtra-tec
Item #: 53057733
Brand: Walter
Model #: 5402911
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | SN.X 1205.. |
| Series | Xtra-tec |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | F4048 |
| Number of Flutes | 5 |
| Keyway Width (mm) | 7.00 |
| Keyway Width (Decimal Inch) | 0.2756 |
| Minimum Insert Radius (Decimal Inch) | 0.0315 |
| Complete Insert Compatibility | SNGX 120512-F57; SNGX 1205ZNN-D27; SNGX 1205ZNN-F27; SNGX 1205ZNN-F57; SNGX 1205ZNN-F67; SNMX 120512-D27; SNMX 120512-F27; SNMX 120512-F57; SNMX 120512-F67; SNMX 120520-D27 |
