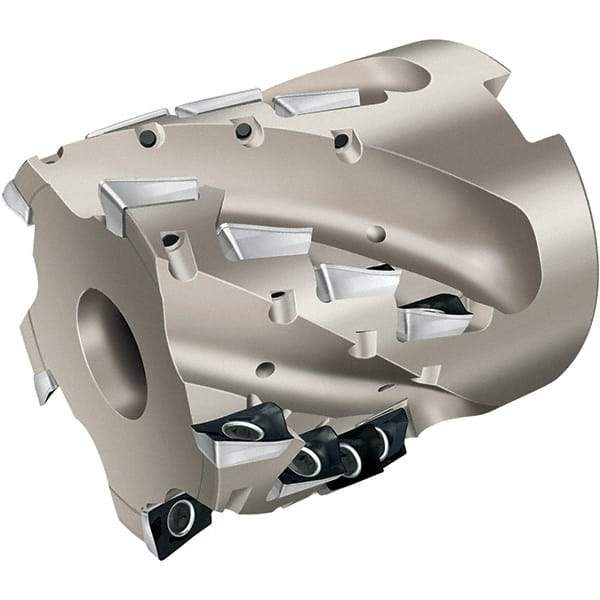

Walter - 9 Inserts, 40mm Cut Diam, 16mm Arbor Diam, 33mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 55mm High, AD.. 1204.. Insert Compatibility, Through Coolant, Series Xtra-tec
Item #: 53057675
Brand: Walter
Model #: 5159805
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Arbor Hole Diameter (mm) | 16.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.6299 |
| Overall Height (mm) | 55.00 |
| Overall Height (Decimal Inch) | 2.1654 |
| Insert Compatibility | AD.. 1204.. |
| Series | Xtra-tec |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 33.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.2992 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | F4138 |
| Number of Flutes | 3 |
| Keyway Width (mm) | 4.00 |
| Keyway Width (Decimal Inch) | 0.1575 |
| Minimum Insert Radius (Decimal Inch) | 0.0157 |
| Complete Insert Compatibility | ADGT 120416R-D67; ADGT 120430R-D67; ADGT 1204PER-D51; ADGT 1204PER-D56; ADGT 1204PER-D67; ADGT 1204PER-F56; ADGT 1204PER-G77; ADHT 120416R-G88; ADHT 120425R-G88; ADHT 120430R-G88; ADHT 120440R-G88; ADHT 1204PER-G88; ADMT 120404R-F56; ADMT 120408R-D56; ADM |
