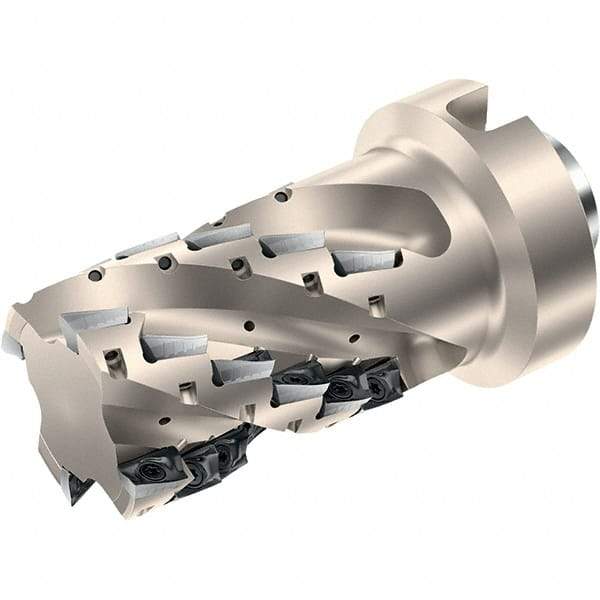

Walter - 40mm Cut Diam, 57mm Max Depth of Cut, 105mm OAL, Indexable Square Shoulder Helical End Mill - Multiple Insert Styles, NCT80 Modular Connection, 90° Lead Angle, Through Coolant, Series Xtra-tec
Item #: 53056636
Brand: Walter
Model #: 5084986
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Shank Type | Modular Connection |
| Modular Connection Size | NCT80 |
| Overall Length/Projection (mm) | 105.00 |
| Overall Length/Projection (Decimal Inch) | 4.1339 |
| Lead Angle | 90 |
| Series | Xtra-tec |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 57.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.2441 |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | F4238 |
| Number of Flutes | 3 |
| Head Length (mm) | 68.00 |
| Head Length (Decimal Inch) | 2.6772 |
| Insert Compatibility | ADGT 1606PER-D51; ADGT 1606PER-D56; ADGT 1606PER-F56; ADHT 160616R-G88; ADHT 160625R-G88; ADHT 160630R-G88; ADHT 160640R-G88; ADHT 1606PER-G88; ADKT1606PER-F56; ADMT 160608R-D56; ADMT 160608R-F56; ADMT 160608R-G56; ADMT 160612R-F56; ADMT 160616R-F56; ADMT |
| Shank Length (Decimal Inch) | 0.7077 |
| Shank Length (mm) | 17.98 |
