![Walter - 5/8" Cut Diam, 0.315" Max Depth of Cut, 5/8" Shank Diam, 2.851" OAL, Indexable Square Shoulder End Mill - Multiple Insert Styles, Weldon Shank, 90° Lead Angle, Through Coolant, Series Xtra-tec - Exact Industrial Supply](http://exactindustrialsupply.com/cdn/shop/products/5305287-21_56e95691-48ba-4791-93c7-827215b13791_1024x1024.jpg?v=1585747619)

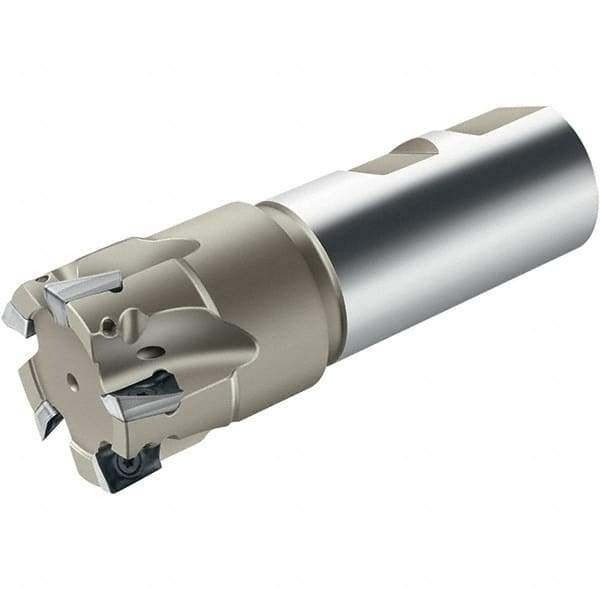

Walter - 5/8" Cut Diam, 0.315" Max Depth of Cut, 5/8" Shank Diam, 2.851" OAL, Indexable Square Shoulder End Mill - Multiple Insert Styles, Weldon Shank, 90° Lead Angle, Through Coolant, Series Xtra-tec
Item #: 53056545
Brand: Walter
Model #: 5051567
Exact Tooling IR#: 04
Product Specifications | |
---|---|
Cutting Diameter (Decimal Inch) | 0.6250 |
Cutting Diameter (Inch) | 5/8 |
Shank Type | Weldon |
Shank Diameter (Inch) | 5/8 |
Shank Diameter (Decimal Inch) | 0.6250 |
Overall Length/Projection (Decimal Inch) | 2.8510 |
Lead Angle | 90 |
Series | Xtra-tec |
Through Coolant | Coolant Through |
Maximum Depth of Cut (Decimal Inch) | 0.3150 |
Number of Cutter Inserts | 2 |
Insert Holding Method | Screw |
End Mill Type | End Mill |
Cutter Style | F4042 |
Number of Flutes | 2 |
Head Length (Decimal Inch) | 0.9450 |
Weldon Flat | Yes |
Insert Compatibility | ADGT 0803PER-D51; ADGT 0803PER-D56; ADGT 0803PER-F56; ADHT 0803PER-G88; ADKT0803PER-F56; ADMT 080302R-F56; ADMT 080304R-D56; ADMT 080304R-F56; ADMT 080304R-G56; ADMT 080308R-F56; ADMT 080312R-F56; ADMT 080316R-F56; ADMT 080320R-F56; ADMT 080325R-F56 |
Shank Length (Decimal Inch) | 1.9060 |
Maximum RPM | 10000 |
