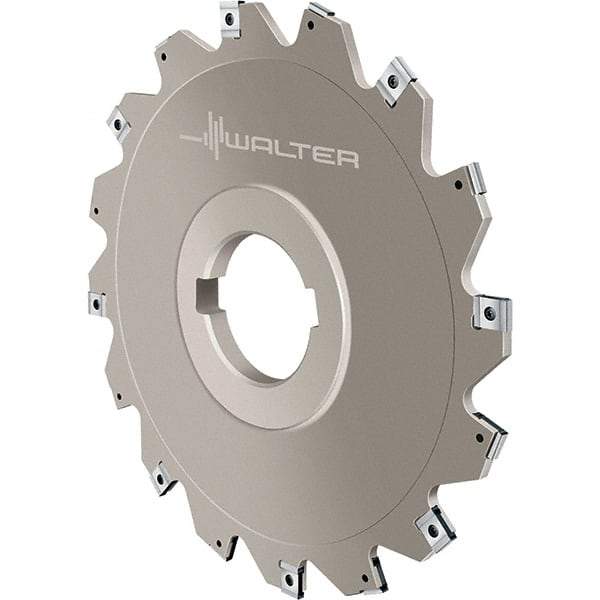

Walter - Arbor Hole Connection, 0.1575" Cutting Width, 0.9449" Depth of Cut, 100mm Cutter Diam, 1.2598" Hole Diam, 5 Tooth Indexable Slotting Cutter - F4053.B Toolholder, LN.X 070204 Insert, Right Hand Cutting Direction
Item #: 53054458
Brand: Walter
Model #: 5301353
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 24.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.9449 |
| Cutter Diameter (mm) | 100.00 |
| Cutter Diameter (Decimal Inch) | 3.9370 |
| Hole Diameter (mm) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Number of Teeth | 5 |
| Toolholder Style | F4053.B |
| Series | Xtra-tec |
| Insert Style | LN.X 070204 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 10 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Hub Diameter (mm) | 50.00 |
| Hub Diameter (Decimal Inch) | 1.9685 |
| Keyway Width (Decimal Inch) | 0.3150 |
| Keyway Width (mm) | 8.00 |
| Radius | No |
| Cutter Body Width (mm) | 8.00 |
| Cutter Body Width (Decimal Inch) | 0.3150 |
| Manufacturers Catalog Number | F4053.B32.100.Z05.04 |
| Complete Insert Compatibility1 | LNHX070204-D57T; LNHX070204-F57T; LNMX070204-D57T; LNMX070204-F57T |
