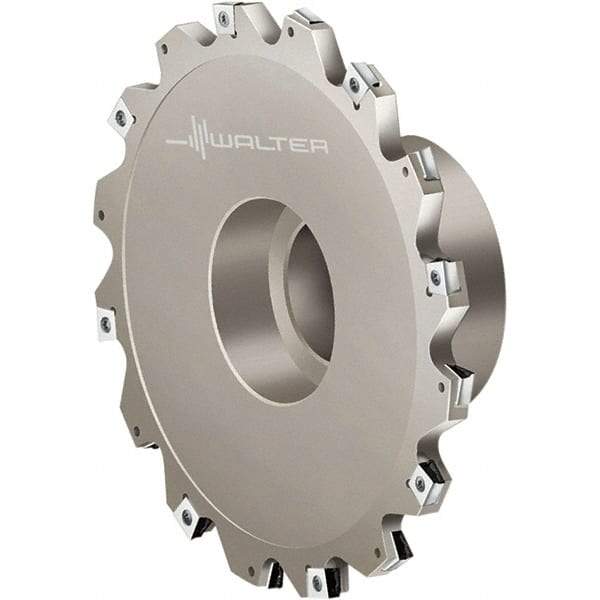

Walter - Shell Mount Connection, 0.315" Cutting Width, 1.9685" Depth of Cut, 200mm Cutter Diam, 1.5748" Hole Diam, 9 Tooth Indexable Slotting Cutter - F4153.BN Toolholder, LN.U 080404 Insert, Right Hand Cutting Direction
Item #: 53054060
Brand: Walter
Model #: 5554768
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 50.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.9685 |
| Cutter Diameter (mm) | 200.00 |
| Cutter Diameter (Decimal Inch) | 7.8740 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 9 |
| Toolholder Style | F4153.BN |
| Series | Xtra-tec |
| Insert Style | LN.U 080404 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 18 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Hub Diameter (mm) | 90.00 |
| Hub Diameter (Decimal Inch) | 3.5433 |
| Keyway Width (Decimal Inch) | 0.3937 |
| Keyway Width (mm) | 10.00 |
| Radius | No |
| Cutter Body Width (mm) | 50.00 |
| Cutter Body Width (Decimal Inch) | 1.9685 |
| Manufacturers Catalog Number | F4153.BN40.200.Z09.08R |
| Complete Insert Compatibility1 | LNHU080404-B57T; LNHU080404-F57T; LNMU080404-B57T; LNMU080404-F57T |
