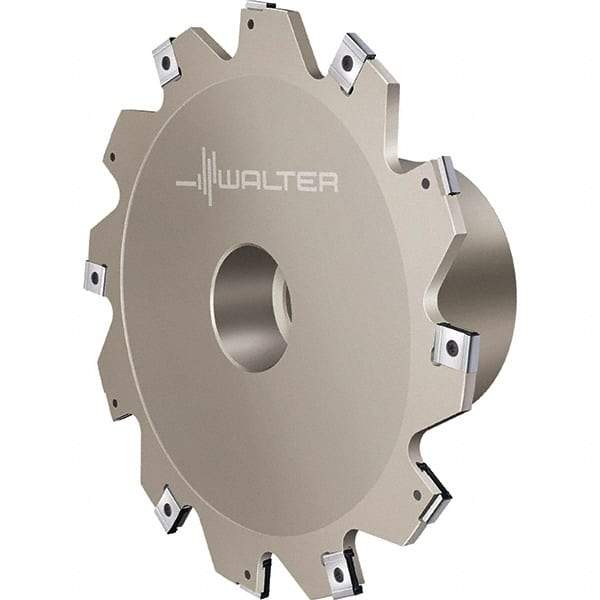

Walter - Shell Mount Connection, 0.1575" Cutting Width, 1.5748" Depth of Cut, 160mm Cutter Diam, 1.5748" Hole Diam, 8 Tooth Indexable Slotting Cutter - F4053.BN Toolholder, LN.X 070204 Insert, Right Hand Cutting Direction
Item #: 53054037
Brand: Walter
Model #: 5554817
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 40.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.5748 |
| Cutter Diameter (mm) | 160.00 |
| Cutter Diameter (Decimal Inch) | 6.2992 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 8 |
| Toolholder Style | F4053.BN |
| Series | Xtra-tec |
| Insert Style | LN.X 070204 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 16 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Hub Diameter (mm) | 75.00 |
| Hub Diameter (Decimal Inch) | 2.9528 |
| Keyway Width (Decimal Inch) | 0.3937 |
| Keyway Width (mm) | 10.00 |
| Radius | No |
| Cutter Body Width (mm) | 50.00 |
| Cutter Body Width (Decimal Inch) | 1.9685 |
| Manufacturers Catalog Number | F4053.BN40.160.Z08.04R |
| Complete Insert Compatibility1 | LNHX070204-D57T; LNHX070204-F57T; LNMX070204-D57T; LNMX070204-F57T |
