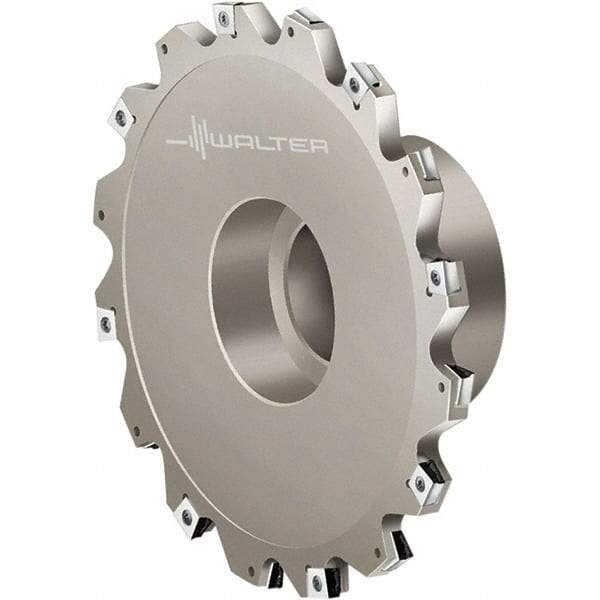

Walter - Shell Mount Connection, 1-1/2" Cutting Width, 0.63" Depth of Cut, 3" Cutter Diam, 3/4" Hole Diam, 4 Tooth Indexable Slotting Cutter - F4153.BN Toolholder, LN.U 080404 Insert, Right Hand Cutting Direction
Item #: 53053948
Brand: Walter
Model #: 5677479
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Cutter Diameter (Decimal Inch) | 3.0000 |
| Hole Diameter (Decimal Inch) | 0.7500 |
| Number of Teeth | 4 |
| Toolholder Style | F4153.BN |
| Series | Xtra-tec |
| Insert Style | LN.U 080404 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.7500 |
| Radius | No |
| Cutter Body Width (Decimal Inch) | 1.5000 |
| Manufacturers Catalog Number | F4153.UBN19.076.Z04.08R |
| Complete Insert Compatibility1 | LNHU080404-B57T; LNHU080404-F57T; LNMU080404-B57T; LNMU080404-F57T |
