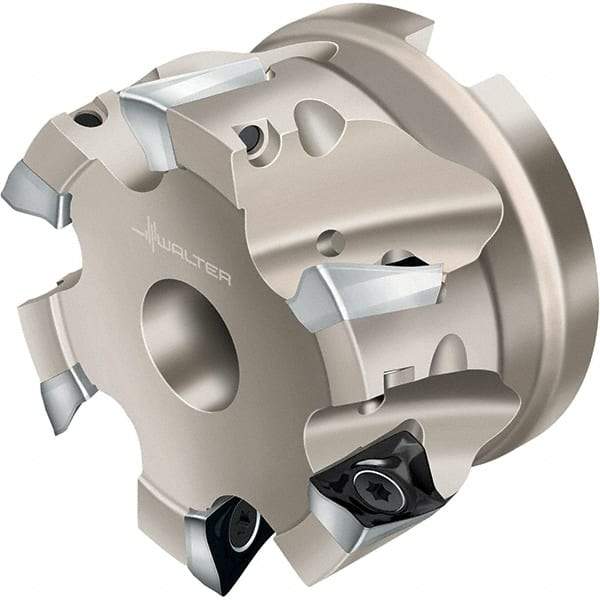

Walter - 8 Inserts, 160mm Cut Diam, 40mm Arbor Diam, 15mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 63mm High, AD.. 1606.. Insert Compatibility, Through Coolant, Series Xtra-tec
Item #: 53052213
Brand: Walter
Model #: 6218887
Exact Tooling IR#: 04
Product Specifications | |
---|---|
Cutting Diameter (mm) | 160.00 |
Cutting Diameter (Decimal Inch) | 6.2992 |
Arbor Hole Diameter (mm) | 40.00 |
Arbor Hole Diameter (Decimal Inch) | 1.5748 |
Overall Height (mm) | 63.00 |
Overall Height (Decimal Inch) | 2.4803 |
Insert Compatibility | AD.. 1606.. |
Series | Xtra-tec |
Through Coolant | Yes |
Maximum Depth of Cut (mm) | 15.00 |
Maximum Depth of Cut (Decimal Inch) | 0.5906 |
Cutting Direction | Right Hand |
Number of Cutter Inserts | 8 |
Insert Holding Method | Screw |
Cutter Style | F4042 |
Number of Flutes | 8 |
Keyway Width (mm) | 10.00 |
Keyway Width (Decimal Inch) | 0.3937 |
Maximum RPM | 10000 |
Minimum Insert Radius (Decimal Inch) | 0.0315 |
Complete Insert Compatibility | ADGT 160616R-D67; ADGT 160630R-D67; ADGT 1606PER-D51; ADGT 1606PER-D56; ADGT 1606PER-D67; ADGT 1606PER-F56; ADGT 1606PER-G77; ADHT 160616R-G88; ADHT 160625R-G88; ADHT 160630R-G88; ADHT 160640R-G88; ADHT 1606PER-G88; ADKT 1606PER-F56; ADMT 160608R-D56; ADM |
