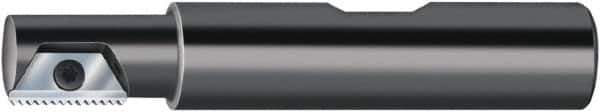

Walter-Prototyp - 25mm Cut Diam, 40mm Max Hole Depth, 25mm Shank Diam, Indexable Thread Mill - Insert Style T1192206, T1291206, T4691206, 5mm Insert Size, 1 Insert, Toolholder Style T9131000, 98mm OAL
Item #: 53052114
Brand: Walter-Prototyp
Model #: 5115671
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Maximum Hole Depth (mm) | 40.00 |
| Maximum Hole Depth (Decimal Inch) | 1.5748 |
| Insert Style | T1192206; T1291206; T4691206 |
| Insert Size (mm) | 5.00 |
| Insert Size (Decimal Inch) | 0.1969 |
| Toolholder Style | T9131000 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 98.00 |
| Overall Length (Decimal Inch) | 3.8583 |
| Number of Threading Inserts | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Screw |
| Neck Diameter (mm) | 19.00 |
| Neck Diameter (Decimal Inch) | 0.7480 |
