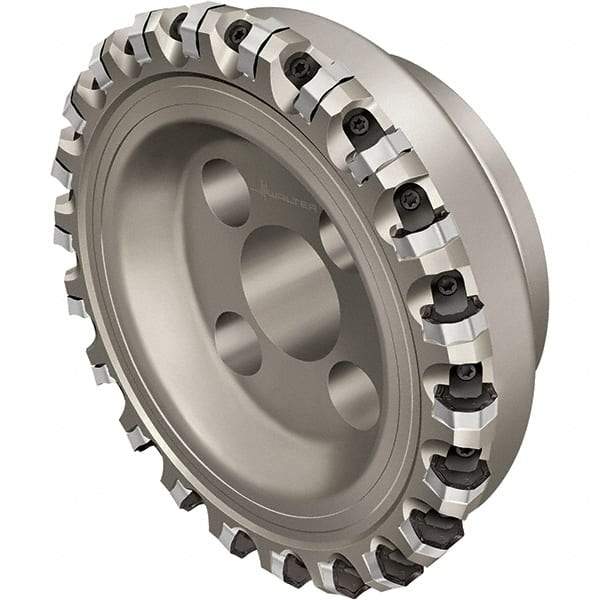

Walter - 80mm Cut Diam, 27mm Arbor Hole, 4mm Max Depth of Cut, Indexable Chamfer & Angle Face Mill - 11 Inserts, XNHF 0705 . . Insert, Right Hand Cut, 11 Flutes, Series Xtra-tec
Item #: 53033007
Brand: Walter
Model #: 5835212
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | XNHF 0705 . . |
| Series | Xtra-tec |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Number of Cutter Inserts | 11 |
| Insert Holding Method | Wedge |
| Cutter Style | F4045 |
| Number of Flutes | 11 |
| Keyway Width (mm) | 7.00 |
| Keyway Width (Decimal Inch) | 0.2756 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.0315 |
| Complete Insert Compatibility | XNHF 070508-D27; XNHF 070508-D57; XNHF 070508-D67; XNHF 0705ANN-D27; XNHF 0705ANN-D57; XNHF 0705ANN-D67 |
