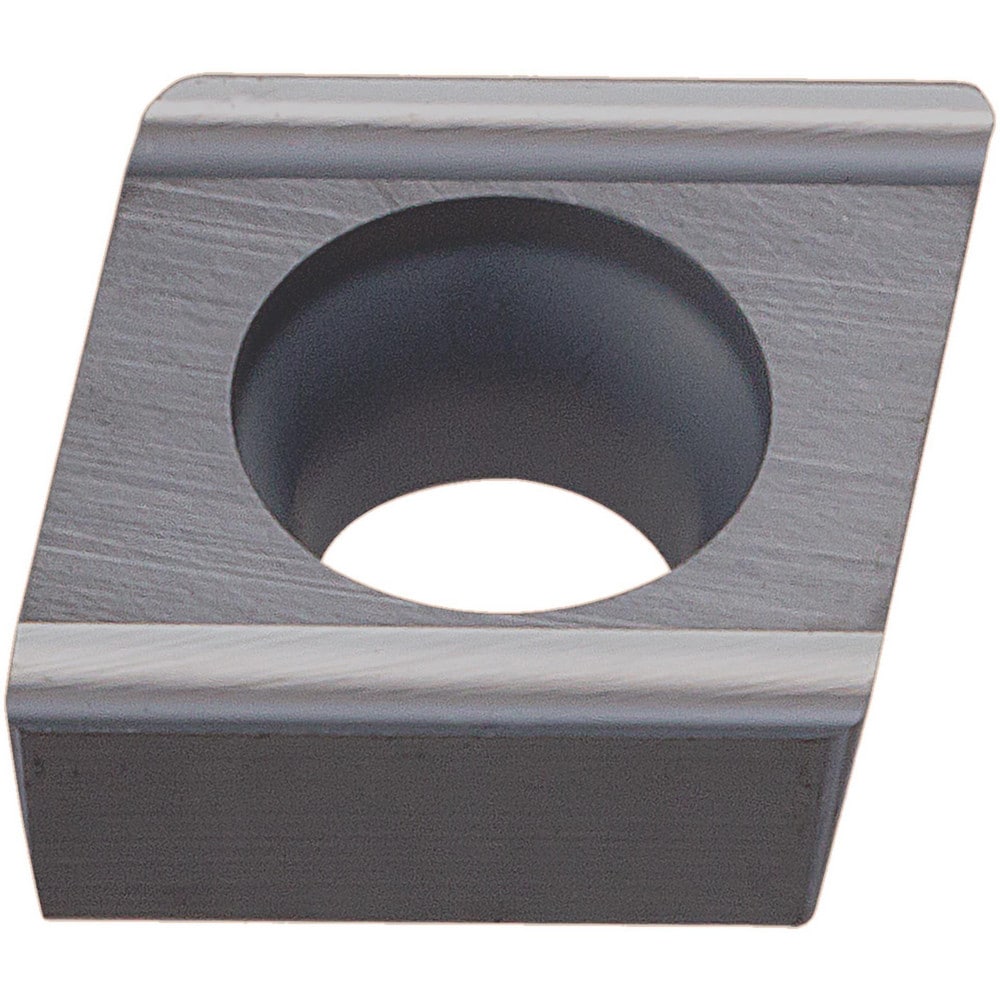

Turning Insert: CCET21.5V3RSN HTI10, Carbide

Turning Insert: CCET21.5V3RSN HTI10, Carbide


Item #: 88356969
Brand: Mitsubishi
Model #: 265842

Product Specifications

ANSI Insert Code CCET21.5V3
ISO Insert Code CCET0602V3
Relief Angle 7
Insert Style CCET
Corner Radius (mm) 0.03
Corner Radius (Decimal Inch) 0.0012
Included Angle 80
Manufacturer Grade HTI10
Coating/Finish Bright/Uncoated
Insert Hand Right Hand
Insert Thickness (Inch) 3/32
Insert Thickness 2.38
Insert Thickness (Decimal Inch) 0.0938
Inscribed Circle (Decimal Inch) 0.2500
Inscribed Circle (Inch) 1/4
Inscribed Circle (mm) 6.35
Insert Material Carbide
Insert Shape C - Diamond (Rhombic) 80-Deg
Chip Breaker Operation Light Machining; Finishing
Grade Characteristics Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Side Clearance Positive
Number Of Cutting Edges 2
Insert Shape Code C
Clearance Code C
Tolerance Code E
Primary Workpiece Material Code K; N
Chip Breaker SN
ANSI Size Code 21.5V3
ISO Size Code 0602V3
UNSPSC Code 23242105
Insert Size Code 2
Country of Origin Japan
