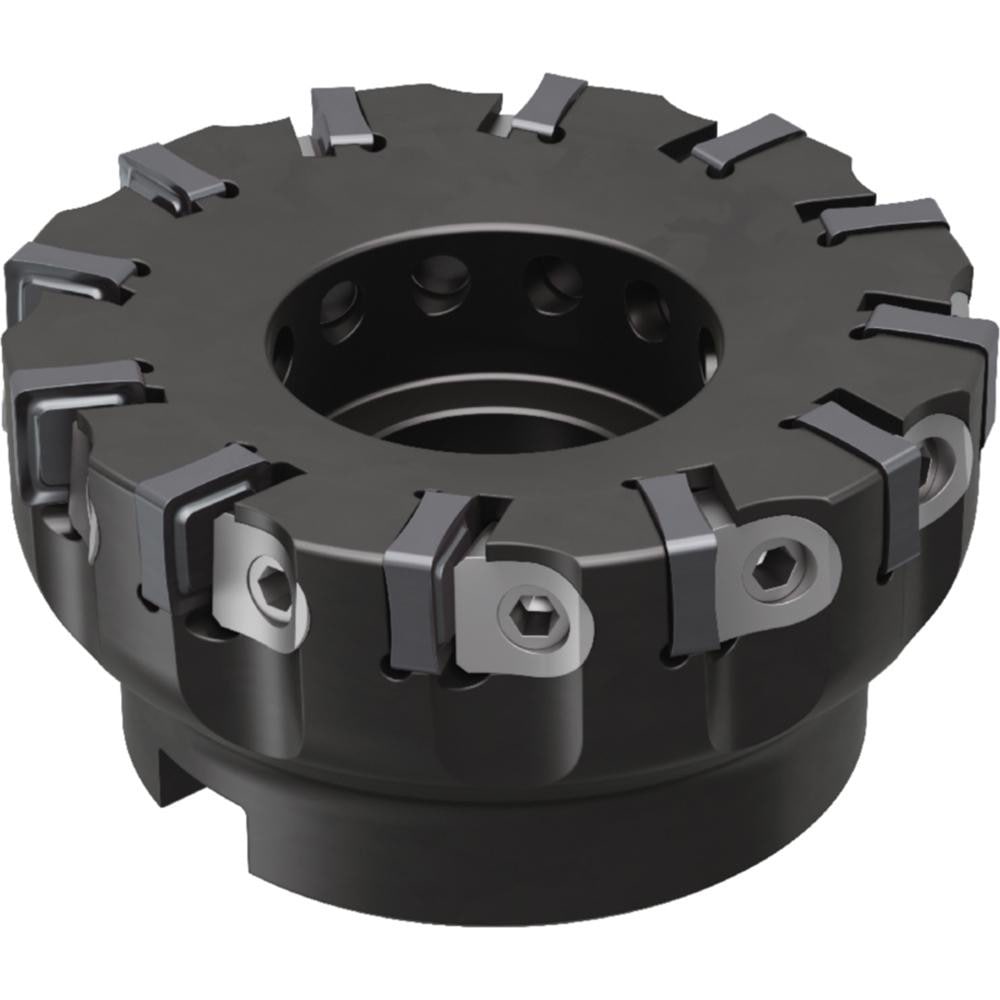

Brand: Widia / Part #: 6921197

Brand: Widia / Part #: 6921197


Item #: 97481444
Brand: Widia
Model #: 6921197

Product Specifications

Minimum Cutting Diameter (Decimal Inch) 8.0000
Minimum Cutting Diameter (Inch) 8
Maximum Cutting Diameter (Inch) 8-1/64
Maximum Cutting Diameter (Decimal Inch) 8.0149
Maximum Depth of Cut (Decimal Inch) 0.4528
Arbor Hole Diameter (Decimal Inch) 2.5000
Arbor Hole Diameter (Inch) 2-1/2
Lead Angle 89.000
Compatible Insert Size Code SN..1204
Cutter Style M8090
Cutting Direction Right Hand
Insert Holding Method Wedge
Rake Negative
Series M8090
Hub Diameter (Decimal Inch) 5.1181
Overall Height (Decimal Inch) 2.3800
Maximum Body Diameter (Decimal Inch) 7.9213
Tool Application Facing; Milling
Tool Performance General Purpose
Primary Workpiece Material Cast Iron
Primary Workpiece Material Code K
Complete Insert Compatibility SNHF120412SNMM
Toolholder Material Steel
Number Of Cutter Inserts 18
Coolant Through No
Number Of Flutes 18
$1,537.42
