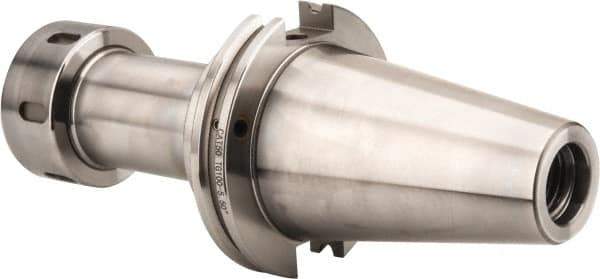

Accupro - 3/64" to 1" Capacity, 5-1/2" Projection, CAT50 Taper Shank, TG/PG 100 Collet Chuck - 0.0002" TIR, Through-Spindle & DIN Flange Coolant
Item #: 52466034
Brand: Accupro
Exact Tooling IR#: 04
Product Specifications | |
---|---|
Collet System | Single Angle |
Collet Series | TG/PG 100 |
Shank Type | Taper Shank |
Taper Size | CAT50 |
Projection (Decimal Inch) | 5.5000 |
Through Coolant | Yes |
Minimum Collet Capacity (Inch) | 3/64 |
Maximum Collet Capacity (Inch) | 1 |
PSC Code | 5136 |
Balanced to (RPM) | 15000 |
TIR (Decimal Inch) | 0.0002 |
Coolant Type | Through-Spindle & DIN Flange |
Collet Nut Diameter (Decimal Inch) | 2.5000 |
