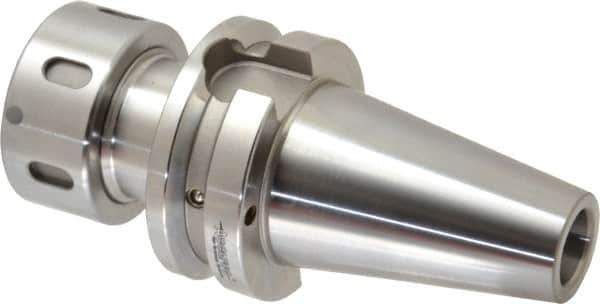

Accupro - 3/64" to 3/4" Capacity, 3" Projection, BT40 Taper Shank, TG/PG 75 Collet Chuck - 0.0002" TIR, Through-Spindle & DIN Flange Coolant
Item #: 52463858
Brand: Accupro
Exact Tooling IR#: 04
Product Specifications | |
---|---|
Collet System | Single Angle |
Collet Series | TG/PG 75 |
Shank Type | Taper Shank |
Taper Size | BT40 |
Projection (Decimal Inch) | 3.0000 |
Through Coolant | Yes |
Minimum Collet Capacity (Inch) | 3/64 |
Maximum Collet Capacity (Inch) | 3/4 |
PSC Code | 5136 |
Balanced to (RPM) | 20000 |
TIR (Decimal Inch) | 0.0002 |
Coolant Type | Through-Spindle & DIN Flange |
Collet Nut Diameter (Decimal Inch) | 1.8900 |
