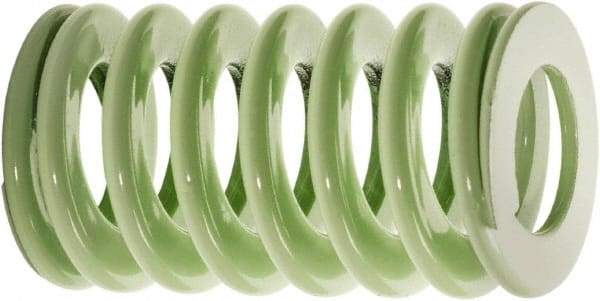

Associated Spring Raymond - 1-1/4" Hole Diam, 5/8" Rod Diam, 7" Free Length, Light Green Die Spring - 250 Lb Max Deflection, 4.8701" Max Deflection, Ultra Light Duty, Chromium Alloy Steel
Item #: 52386505
Brand: Associated Spring Raymond
Model #: 302-628-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/4 |
| Rod Diameter (Inch) | 5/8 |
| Free Length (Inch) | 7 |
| Load Type | Ultra Light-Duty |
| Color | Light Green |
| Maximum Deflection Load (N) | 1112.06 |
| Maximum Deflection Load (Lb.) | 250.00 |
| Maximum Deflection (mm) | 123.70 |
| Maximum Deflection (Decimal Inch) | 4.8701 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
