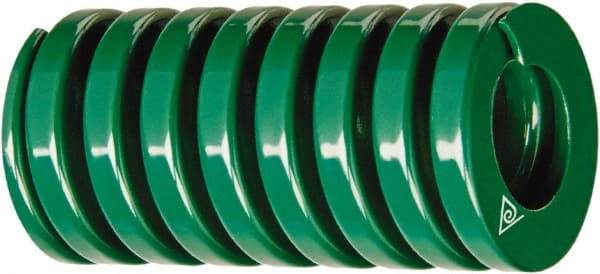

Associated Spring Raymond - 1-1/4" Hole Diam, 5/8" Rod Diam, 3" Free Length, Green Die Spring - 502 Lb Max Deflection, 1.9252" Max Deflection, Light Duty, Chromium Alloy Steel
Item #: 52384401
Brand: Associated Spring Raymond
Model #: 303-612-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/4 |
| Rod Diameter (Inch) | 5/8 |
| Free Length (Inch) | 3 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (N) | 2233.01 |
| Maximum Deflection Load (Lb.) | 502.00 |
| Maximum Deflection (mm) | 48.90 |
| Maximum Deflection (Decimal Inch) | 1.9252 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
