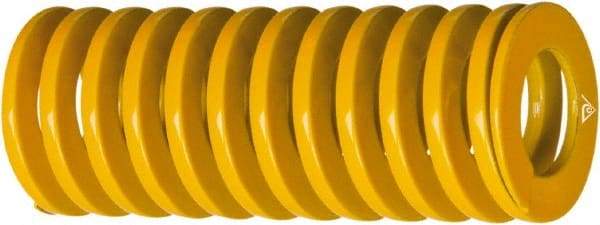

Associated Spring Raymond - 1-1/4" Hole Diam, 5/8" Rod Diam, 3" Free Length, Yellow Die Spring - 1192 Lb Max Deflection, 0.9213" Max Deflection, Extra Heavy Duty, Chromium Alloy Steel
Item #: 52381902
Brand: Associated Spring Raymond
Model #: 306-612-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/4 |
| Rod Diameter (Inch) | 5/8 |
| Free Length (Inch) | 3 |
| Load Type | Extra Heavy-Duty |
| Color | Yellow |
| Maximum Deflection Load (N) | 5302.28 |
| Maximum Deflection Load (Lb.) | 1192.00 |
| Maximum Deflection (mm) | 23.40 |
| Maximum Deflection (Decimal Inch) | 0.9213 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
