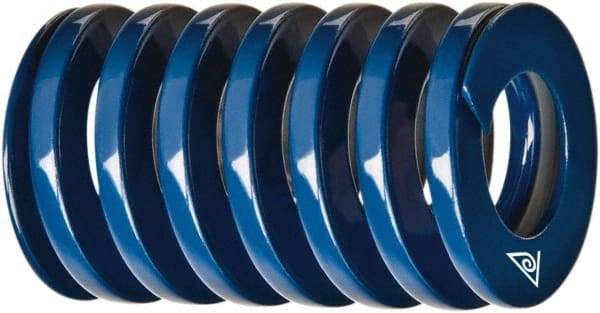

Associated Spring Raymond - 1-1/4" Hole Diam, 5/8" Rod Diam, 2" Free Length, Blue Die Spring - 606 Lb Max Deflection, 0.9134" Max Deflection, Medium Duty, Chromium Alloy Steel
Item #: 52380631
Brand: Associated Spring Raymond
Model #: 304-608-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/4 |
| Rod Diameter (Inch) | 5/8 |
| Free Length (Inch) | 2 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (N) | 2695.62 |
| Maximum Deflection Load (Lb.) | 606.00 |
| Maximum Deflection (mm) | 23.20 |
| Maximum Deflection (Decimal Inch) | 0.9134 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
