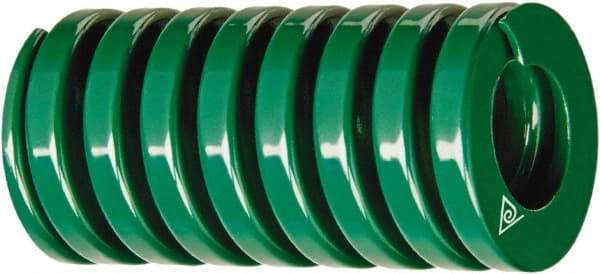

Associated Spring Raymond - 1-1/4" Hole Diam, 5/8" Rod Diam, 1-1/2" Free Length, Green Die Spring - 501 Lb Max Deflection, 0.9567" Max Deflection, Light Duty, Chromium Alloy Steel
Item #: 52379310
Brand: Associated Spring Raymond
Model #: 303-606-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/4 |
| Rod Diameter (Inch) | 5/8 |
| Free Length (Inch) | 1-1/2 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (N) | 2228.56 |
| Maximum Deflection Load (Lb.) | 501.00 |
| Maximum Deflection (mm) | 24.30 |
| Maximum Deflection (Decimal Inch) | 0.9567 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
