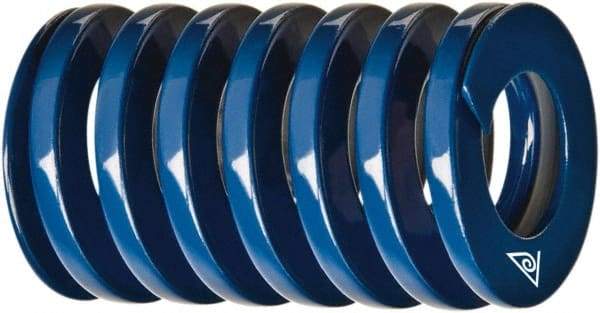

Associated Spring Raymond - 1-1/2" Hole Diam, 3/4" Rod Diam, 5" Free Length, Blue Die Spring - 714 Lb Max Deflection, 2.0512" Max Deflection, Medium Duty, Chromium Alloy Steel
Item #: 52377694
Brand: Associated Spring Raymond
Model #: 304-720-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/2 |
| Rod Diameter (Inch) | 3/4 |
| Free Length (mm) | 127.00 |
| Free Length (Inch) | 5 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (N) | 3176.03 |
| Maximum Deflection Load (Lb.) | 714.00 |
| Maximum Deflection (mm) | 52.10 |
| Maximum Deflection (Decimal Inch) | 2.0512 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
