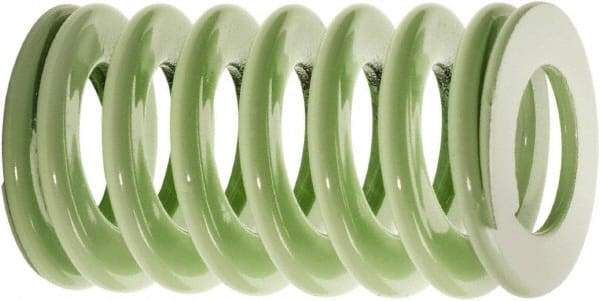

Associated Spring Raymond - 1-1/2" Hole Diam, 3/4" Rod Diam, 12" Free Length, Light Green Die Spring - 377 Lb Max Deflection, 7.9488" Max Deflection, Ultra Light Duty, Chromium Alloy Steel
Item #: 52377140
Brand: Associated Spring Raymond
Model #: 302-748-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/2 |
| Rod Diameter (Inch) | 3/4 |
| Free Length (Inch) | 12 |
| Load Type | Ultra Light-Duty |
| Color | Light Green |
| Maximum Deflection Load (N) | 1676.98 |
| Maximum Deflection Load (Lb.) | 377.00 |
| Maximum Deflection (mm) | 201.90 |
| Maximum Deflection (Decimal Inch) | 7.9488 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
