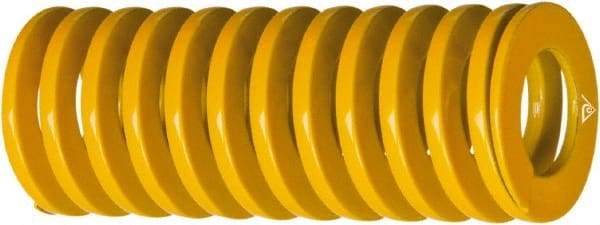

Associated Spring Raymond - 1/2" Hole Diam, 9/32" Rod Diam, 1" Free Length, Yellow Die Spring - 109 Lb Max Deflection, 0.3504" Max Deflection, Extra Heavy Duty, Chromium Alloy Steel
Item #: 52376993
Brand: Associated Spring Raymond
Model #: 306-204-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1/2 |
| Rod Diameter (Inch) | 9/32 |
| Free Length (Inch) | 1 |
| Load Type | Extra Heavy-Duty |
| Color | Yellow |
| Maximum Deflection Load (N) | 484.86 |
| Maximum Deflection Load (Lb.) | 109.00 |
| Maximum Deflection (mm) | 8.90 |
| Maximum Deflection (Decimal Inch) | 0.3504 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
