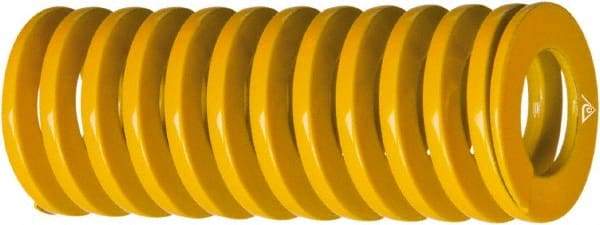

Associated Spring Raymond - 1/2" Hole Diam, 9/32" Rod Diam, 1-1/4" Free Length, Yellow Die Spring - 121 Lb Max Deflection, 0.502" Max Deflection, Extra Heavy Duty, Chromium Alloy Steel
Item #: 52376456
Brand: Associated Spring Raymond
Model #: 306-205-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1/2 |
| Rod Diameter (Inch) | 9/32 |
| Free Length (Inch) | 1-1/4 |
| Load Type | Extra Heavy-Duty |
| Color | Yellow |
| Maximum Deflection Load (N) | 538.24 |
| Maximum Deflection Load (Lb.) | 121.00 |
| Maximum Deflection (mm) | 12.75 |
| Maximum Deflection (Decimal Inch) | 0.5020 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
